Mitutoyo Inside Micrometer B 133-231

Product Code: 133-231

$192.47$174.97 Ex. GST

Product Code: 133-231 SKU 133-231 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

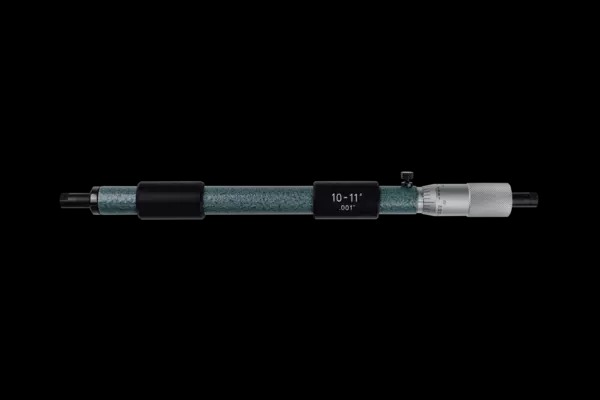

133-231 Mitutoyo Tubular Inside Micrometer: 10-11″

The Mitutoyo 133-231 Tubular Inside Micrometer – Inch has the following specifications:

Range: 10-11″
Accuracy: +/-.0003″
Graduations: .001″
Features:

With locking clamp.
Zero point can be readjusted by rotating the micrometer head sleeve. A key wrench is supplied.
Clear, crisp graduations on the satin chrome finished micrometer head.
Carbide-tipped measuring faces.
Supplied in fitted plastic case. Over 200mm / 8″ supplied in wooden case.

Additional information

Weight 0.2350 kg
barcode
Additional Information

Digital/Analog: Analog
Inch-Metric: Inch
Range: 10 – 11 "
Graduation: 0.001"
Max. Permissible Error J MPE: ±0.0003"
Scale: Thimble and sleeve satin chrome finish, Ø18 mm
Measuring Spindle: With spindle lock (except 50-75 mm), spindle pitch 0.5 mm
Measuring Face: Carbide tipped
Measuring Method: 2-point
Delivered: Including box and spanner
Mass: 235 g

Brand

Mitutoyo
