Mitutoyo Inside Micrometer C 140-159

Description

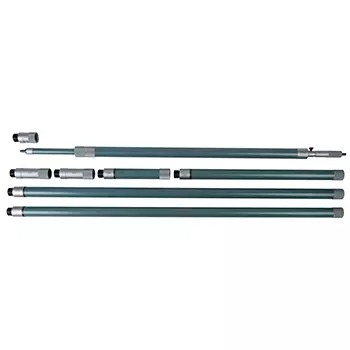

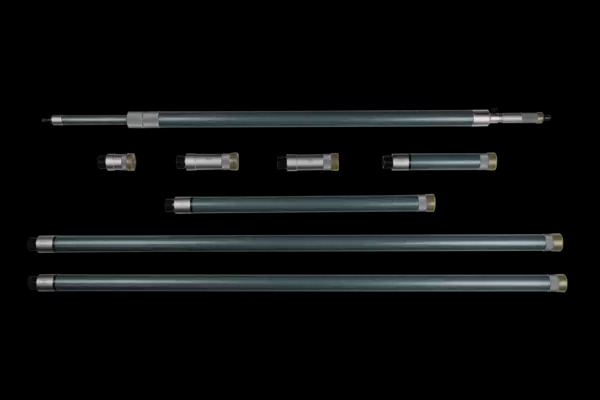

140-159 Mitutoyo Tubular Inside Micrometer – Metric

The Mitutoyo 140-159 Tubular Inside Micrometer – Metric has the following specifications:

Range: 1000 – 4000mm
Extension pipes: 50mm, 100mm (2 pcs.), 200mm, 500mm, 1000mm (2 pcs.)
Travel of micrometer head: 50mm
Accuracy: +/-(3+n+L/50)?m*n=Number of rod, L=Maximum measuring length (mm), Fraction rounded up
Graduation: 0.01mm or .001″
Features:

Wide range of ID measurements by combining extension rods (pipes) and anvils with the micrometer head.
The Series 140 use highly durable/ large-diameter extension pipes.
Supplied in fitted wooden case.
