Mitutoyo Interface For Spc 264-002E

Product Code: 264-002E

$1,471.76$1,337.96 Ex. GST

Product Code: 264-002E SKU 264-002E Categories Interface For Spc, MEASUREMENT

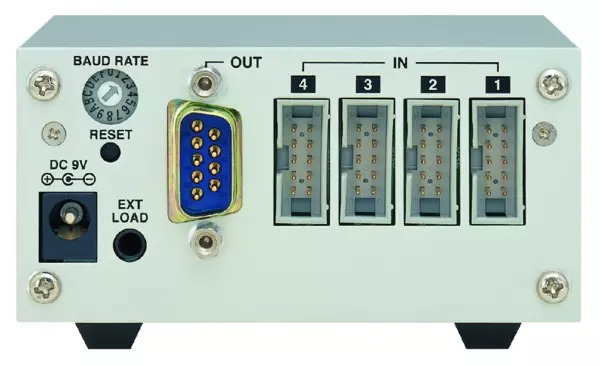

Mitutoyo Interface For Spc 264-002E - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

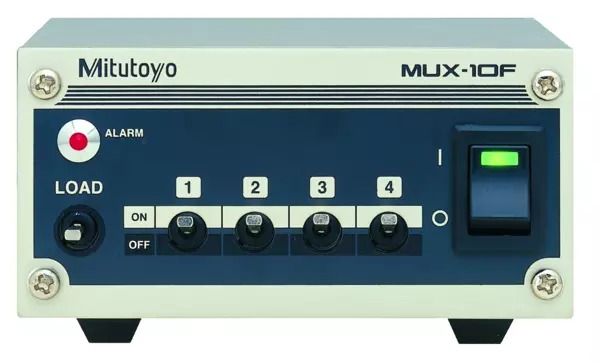

The MUX-10F 4 channel D-SUB9 serial interface is a microcontrolled interface that connects four measurement devices, with Digimatic output, to the RS-232C serial port of a computer.

Additional information

Weight	0.0000 kg
Dimensions	Length 9.14cm x Width 9.25cm x Depth 5.04cm
barcode
Additional Information	Data input: 4 x Digimatic Data output: RS-232C Power supply: AC Adapter 9 V 500 mA Interface cable connection: D-SUB 9 Footswitch connector: Yes Baud rate: 300, 600, 1200, 2400, 4800, 9600, 19200 Data bits: 8 Stop bits: 1 Parity: none Dimensions (WxDxH): 91.4 x 92.5 x 50.4 mm Delivered: With AC-Adapter Data transmission method: Half-duplex
