Mitutoyo Limit Micrometer B 113-103

Description

The Mitutoyo 113-103 Limit Micrometer has the following specifications:

Range: 25-50mm
Graduations: 0.01mm
Accuracy: +/- .003mm

Features:
Vernier scales on the thimble provide precise outside diameter measurements to within +/-0.003mm accuracy
Measuring surfaces are constructed of carbide for exceptional flatness and lasting durability
Ratchet mechanism provides an audible click to ensure measurement performs at a constant force
Knurled friction thimbles provide quick adjustments even when wearing gloves
Satin chrome finish on the sleeve and laser etched measurements on thimble for easier reading
Frame has a baked enamel finish for durability and longer lifespan
Can be used as a GO/NG gage by setting the upper and lower limits.
Measuring standard included on the 25-50mm model.

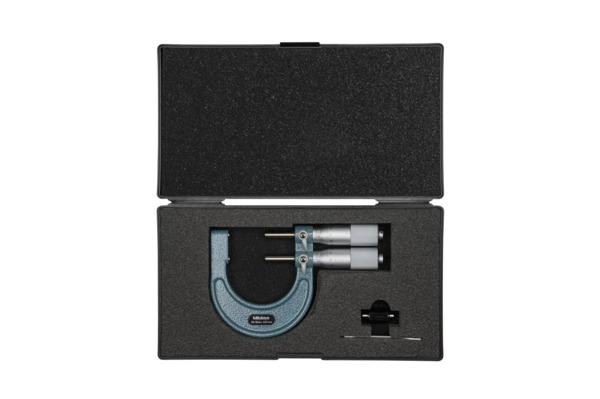

Supplied in fitted plastic case

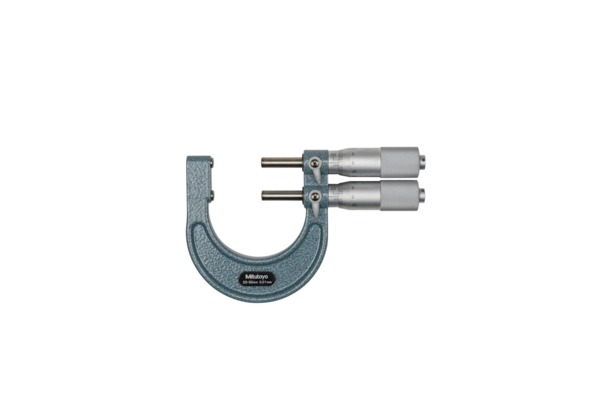

The Mitutoyo 113-103 limit micrometers have dual sets of anvils and spindles and can be used for GO/NG inspection within tolerance limits. The Mitutoyo limit micrometer is ideal for checking to ensure workpieces are within set tolerance limits, as well as taking highly accurate outside dimension measurements. Both sets of anvils and spindles are constructed of hardened steel, manufactured with exceptional precision in our own Japanese factory. Each thimble and spindle operates independently with the same measuring accuracy. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements.

Technical Data:
Technology: Mechanical
Units: Metric
SPC Output: No
Ratchet/Thimble: Plain Thimble
Flatness: 0.0006mm
Parallelism: 3µm or less
Measuring Faces: Carbide tipped
