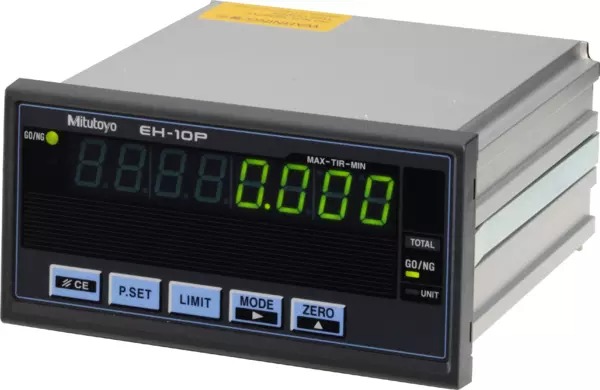

Mitutoyo Linear Gauge Counter EH 542-075E (MTI)

Resolution: 1E-4 / 0.001 / 0.01 mm
Digimatic data output: Yes
ON/OFF: Yes
Model: EH-101P
Power supply: Via AC Adapter (12-24 V DC, 700 mA No. 527428 Standard Accessories)
BCD output: Yes
External HOLD: Yes
MAX / MIN / Difference measurement: Yes
Mm / inch switching: Yes
Max. input frequency: 2.5 MHz (2-phase square wave), response speed depends on gauge specification
External peak-hold cancel: Yes
Lower digit blank-out: Yes

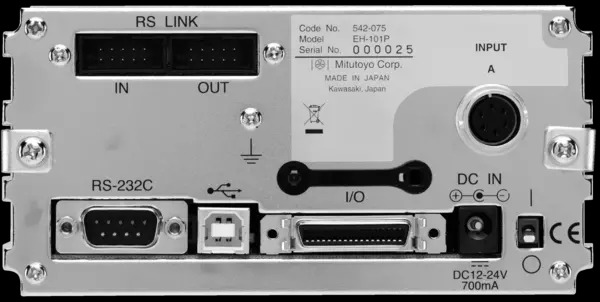

RS link: Yes
Input signal type: Differential square-wave
Applicable gauge: LGF, LGK, LGB, LG, LGM, LGH (excluding LGF-Z with reference point, LGH with 0.01 µm resolution)
Gauge inputs: 1
ZERO SET: Yes
PRESET: Yes
External tolerance set (when a PC is used): Yes
Counting direction switchable: Yes
External PRESET / ZERO: Yes
Tolerance judgement display: LED display (3 steps: Amber, Green, Red / 5 steps: Amber, Amber flashing, Green, Red flashing, Red)
