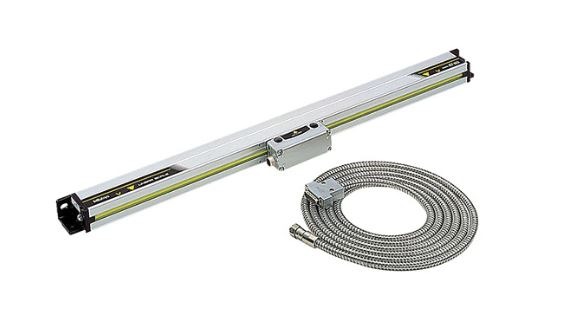

Mitutoyo Linear Scale 100Mm 539-111-30

Product Code: 539-111-30

$830.59$755.08 Ex. GST

Product Code: 539-111-30 SKU 539-111-30 Categories Linear Scale 100Mm, MEASUREMENT

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

· A wide variety of measuring ranges are available in this standard type scale unit.
· Connectable to the KA-200 counter, KLD-200 counter, or PSU-200.

Additional information

Weight	0.0000 kg
barcode
Additional Information	Product Type: Linear Scale Measuring Unit: Protection Grade IP53 Cable Length (m): – Product Model: AT103-100 Resolution: – Maximum Response Speed: 120 m/min Output Signal: Two 90° phase-shifted sinusoidal signals Signal Cable Length: 3 m Accuracy (20°C): (5 + 5L0/1000) μm Signal Output Pitch: 20 µm Scale Reference Point: Output in 50 mm pitch Operating Temperature: 0 to 45°C
