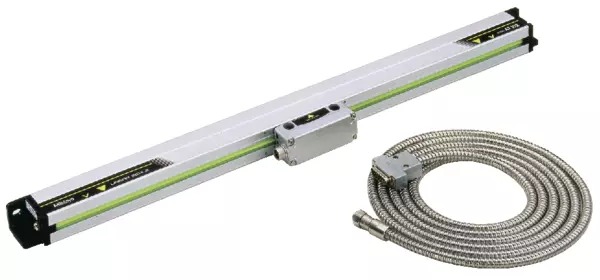

Mitutoyo Linear Scale 1700Mm 539-134-30

Product Code: 539-134-30

$2,721.42$2,474.02 Ex. GST

Product Code: 539-134-30 SKU 539-134-30 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

These Mitutoyo linear scales offer sturdy construction and high resistance to vibration-protection rating are similar in upright and reclining position They include the following features:

The innovative rubber lips keep out contaminants when you are using the scale in a machine shop.

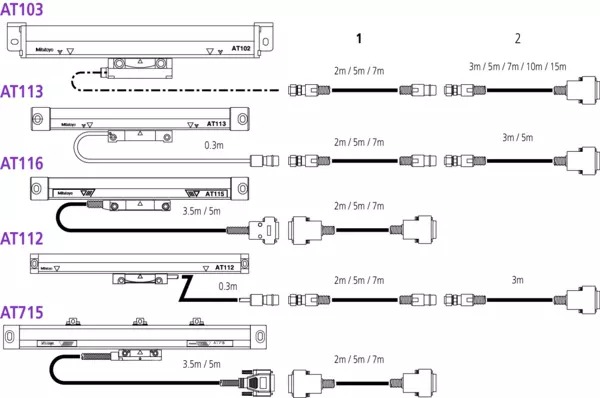

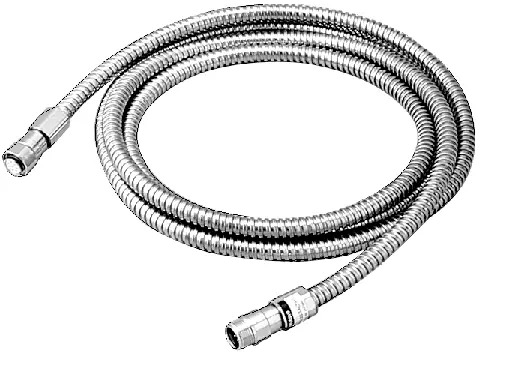

An armoured signal cable is used to connect the scale unit to the DRO counter, so you can operate it safely even in hostile environments.
The signal cable outlet can be positioned on either side of the slider so you can connect the signal cable from either direction.

Additional information

Weight 5.3000 kg
barcode
Additional Information

Accuracy: 100 to 3000 mm
(5 + 5L/1000) µm; 3250 to 6000 mm
(5 + 8L/1000) µm; L = Effective range (mm)

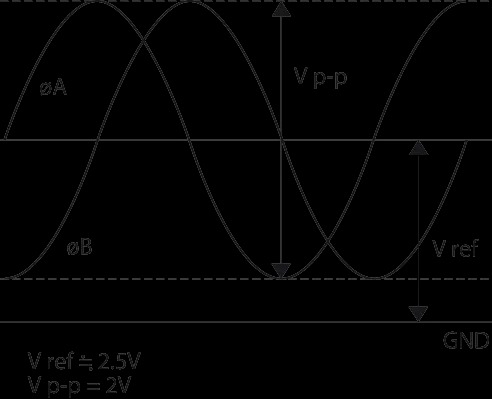

Output Waveform: Two 90° phase-shifted sinusoidal signals
Max. Drive Speed: 120 m/min
Signal Period: 20 µm
Scale Reference Points: Every 50 mm
Dust/Water Protection Level: IP53
Cable Length: 5 m
Effective Length: 1,700 mm
Mass: 5.3 kg

Brand

Mitutoyo
