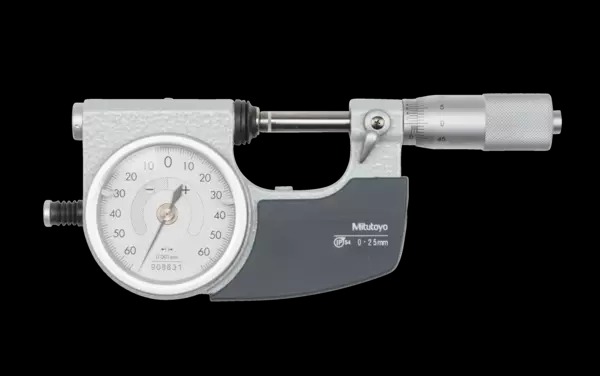

Mitutoyo MICROMETER 0-25MM 510-141

Description

The Mitutoyo 510-141 IP54 Indicating Micrometer has the following specifications:
Range: 0-25mm
Indicating Range: +/- 0.060mm
Graduations: .001mm

Features:
Available in Metric and Inch models
Dial indicator for Go/No-Go tolerance inspection available in inch units is highly accurate and easy to read

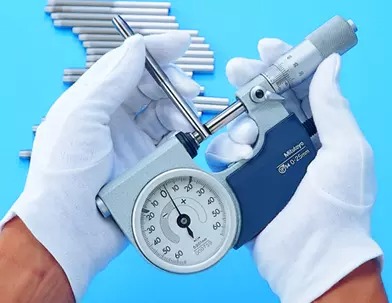

Retractable anvil with indicator is popular for three-wire measurements of pitch diameter of precision screws, and parallelism measurements.
The micrometer’s ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements
Carbide facing on the spindle and anvil resists wear to keep surfaces flatter with longer accuracy
A spindle lock provides secure locking of the measurement position
Satin chrome finish on the thimble and sleeve resists rust and reduces glare
Includes a standard bar except for 0-1″ or 0-25mm model
IP54 protection resists debris, dust and water

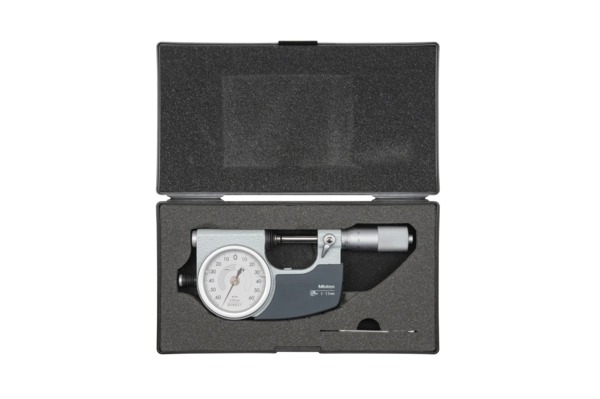

Supplied in fitted plastic case

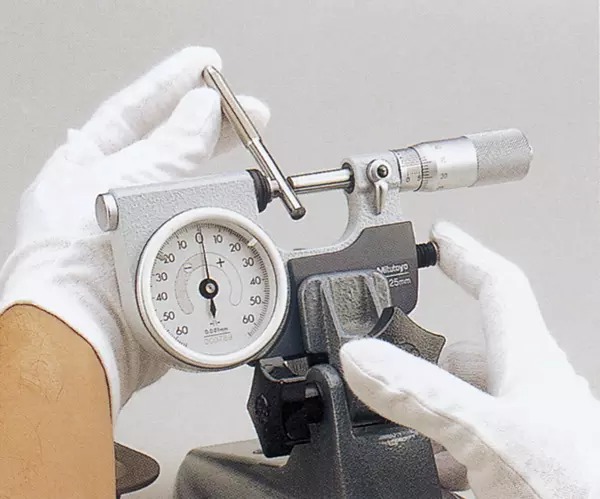

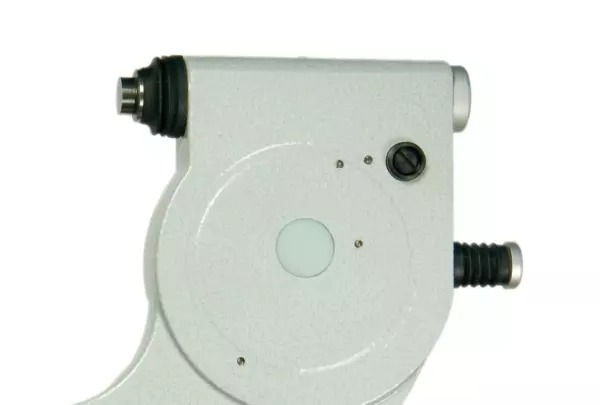

The Mitutoyo 510-141 indicating micrometer features a retractable anvil with indicator for three-wire measurements of pitch diameter for precision screws and parallelism measurements. The Mitutoyo indicating micrometer has a smooth, highly precise mic head essential for placing workpieces in rough position, and a dial indicator for fast, accurate deviation readings from a master. A retractable spindle trigger has a balanced spring and operates easily with a button on the anvil side of the frame. The retractable anvil allows for faster workpiece throughput without sacrificing accuracy. The micrometer’s ratchet-stop mechanism delivers uniform pressure on a workpiece for precise, repeatable measurements. A Vernier scale with slanted barrel markings reduces parallax errors and provides highly accurate outside dimension measurements.

Technical Data:
Technology: Mechanical
IP Rating: IP54
Measuring Force: 5-10N
Measuring Faces: Carbide tipped
