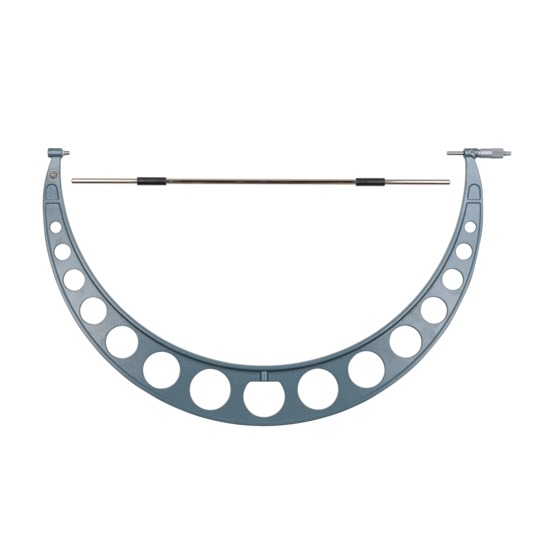

Mitutoyo Micrometer 103-167

Product Code: 103-167

$1,135.61$1,032.37 Ex. GST

Product Code: 103-167 SKU 103-167 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Lightweight workshop design with baked-enamel-finished frame.
Equipped with Ratchet Stop for constant measuring force.

Additional information

Weight 6.3850 kg
barcode
Additional Information

Digital/Analog: Analog
Delivered: Including box, key, setting standard
Inch-Metric: Metric
Range: 750 – 775 mm
Graduation: 0.01 mm
Max. Permissible Error J MPE: ±9 µm
Flatness: 1 µm
Parallelism: 9 µm
Measuring face: Carbide-tipped, micro-lap finish

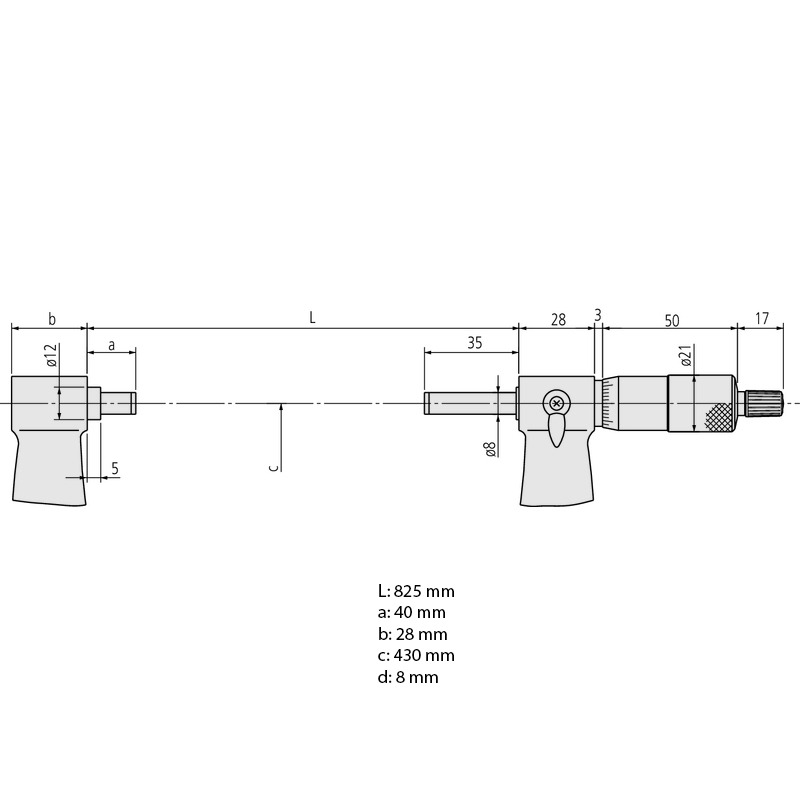

Measuring spindle: With spindle lock, ø6.35 mm (≤300 mm) / ø8 mm (>300 mm), spindle pitch 0.5 mm
Scale: Thimble and sleeve satin chrome finish, ø21 mm
Measuring force: 10 – 15 N
Mass: 6385 g

Brand

Mitutoyo
