Home » Shop » MEASUREMENT » Micrometer » Mitutoyo Micrometer 103-174
$1,381.86$1,256.24 Ex. GST

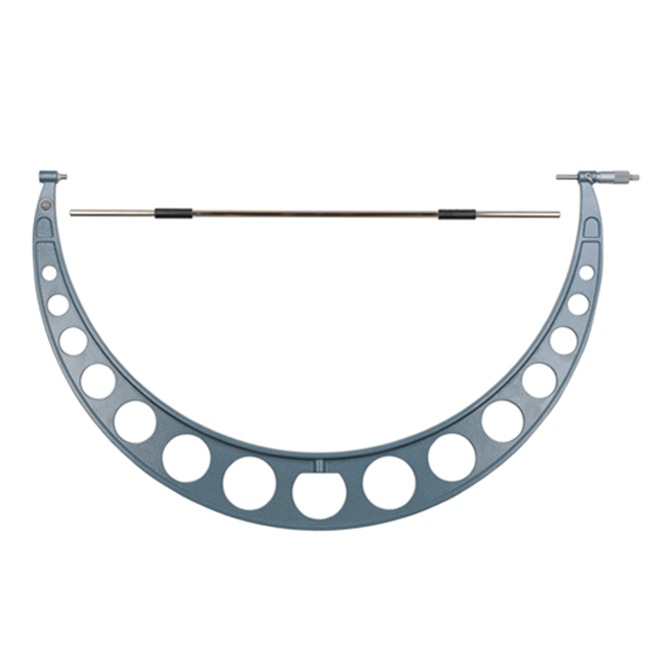

Lightweight workshop design with baked-enamel-finished frame. Equipped with Ratchet Stop for constant measuring force.
Digital/Analog: Analog Delivered: Including box, key, setting standard Inch-Metric: Metric Range: 925 – 950 mm Graduation: 0.01 mm Max. Permissible Error J MPE: ±9 µm Flatness: 1 µm Parallelism: 11 µm Measuring face: Carbide-tipped, micro-lap finish Measuring spindle: With spindle lock, ø6.35 mm (≤300 mm) / ø8 mm (>300 mm), spindle pitch 0.5 mm Scale: Thimble and sleeve satin chrome finish, ø21 mm Measuring force: 10 – 15 N Mass: 8240 g
