$5,931.42$5,392.20 Ex. GST

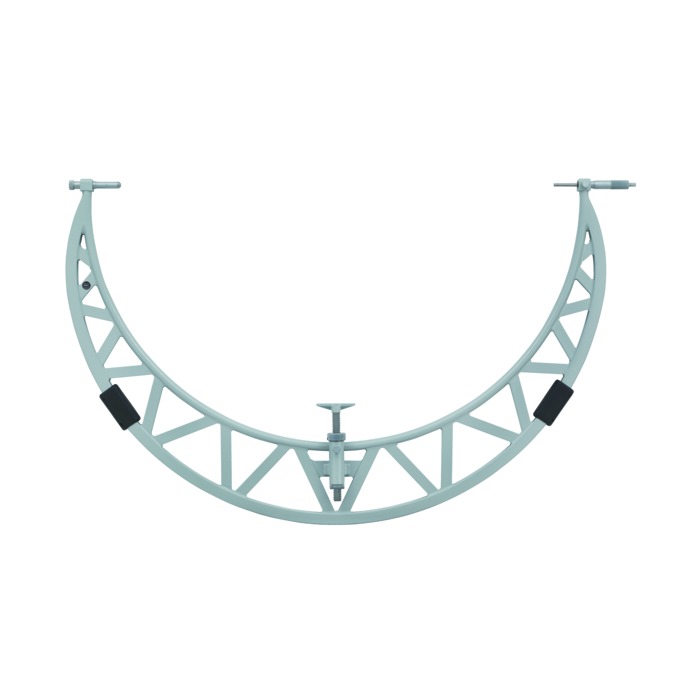

The Mitutoyo 105-415 Outside Micrometer has the following specifications:
Range: 1700-1800mm
Extension Collars: 50mm
Accuracy: ±(6+R/75)Ìm, R=max. range (mm)
Features:
Wide measuring range with extension anvil collars.
50mm spindle stroke.
With Ratchet Stop for constant force.
Supplied with zero-setting standards bar for each range.
Square and round pipes are combined for light weight and rigid frame (for models over 1000mm range).
Workpiece stopper (for models over 1000mm range).
Supplied in a fitted wooden case.
Technical Data
Graduation: 0.01mm
Flatness: 1.3µm
Parallelism: (2+R/100)µm, R=max. range (mm)
Measuring faces: Carbide tipped
| Weight | 14.0000 kg |
|---|---|
| barcode | |
| Additional Information | Digital/Analog: Analog |
