Mitutoyo Micrometer 105-428

Description

The Mitutoyo 105-428 Outside Micrometer – With Extension Anvils has the following specifications:

Range: 40-44″
Extension collars: 2″
Mass: 10kg

Features:

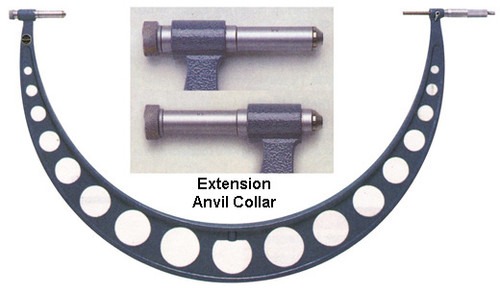

Wide measuring range with extension anvil collars.
50mm spindle stroke.
With ratchet stop for constant force.
Supplied with zero-setting standards bar for each range.
Square and round pipes are combined for light weight and rigid frame (for models over 1000mm range).
Workpiece stopper (for models over 1000mm range).
Supplied in a fitted wooden case.

Technical Data:
Accuracy: ±(6+R/75)μm, R=max. range (mm)
Graduation: .001″ / 0.01mm
Flatness: .000052″ / 1.3μm
Parallelism: [.00016″+.00004 (L/4)”] L=max. range (inch) (2+R/100)μm, R=max. range (mm)
Measuring faces: Carbide tipped
