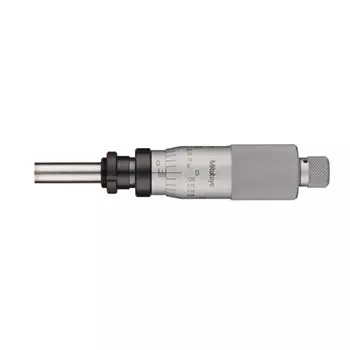

Mitutoyo Micrometer 110-111

Description

The Mitutoyo 110-111 Micrometer Head – Differential Screw Translator (Extra-fine Feeding) Type has the following specifications:

Range: 0-.05″
Graduations: .00005″
Accuracy: +/- .0002″ / +/- .00006″
Stem Diameter: .500″
Stem: With Clamp Nut
Spindle Face: Spherical

Features:
Differential movements of spindle threads and units allow fine spindle feeding (0.05mm/rev), resulting in high resolution measurements.
Non-rotating spindle
Carbide tipped measuring face.

Technical Data:
Spindle Pitch: 0.05mm or .025mm (0-13mm and 0-.500″ models)
Spindle Face: Flat w/ carbide tip (more than HRA90) or spherical lapped surface
Fixture thickness for clamp nut: 9.5mm or 11.5mm (0-13mm and 0-.500″ models)
Scale Surface: Hard-chrome plating
