$647.17$588.34 Ex. GST

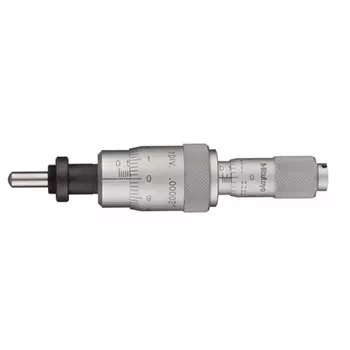

The Mitutoyo 110-504 Micrometer Head – Differential Screw Translator (Extra-fine Feeding) Type has the following specifications:
Range: 0-.500″
Graduations: .00002″/.001″
Accuracy: +/- .00015″ / +/- .00006″
Stem Diameter: .375″
Stem: With Clamp Nut
Spindle Face: Spherical
Features:
Differential movements of spindle threads and units allow fine spindle feeding (0.05mm/rev), resulting in high resolution measurements.
Non-rotating spindle
Carbide tipped measuring face.
Technical Data:
Spindle Pitch: 0.05mm or .025mm (0-13mm and 0-.500″ models)
Spindle Face: Flat w/ carbide tip (more than HRA90) or spherical lapped surface
Fixture thickness for clamp nut: 9.5mm or 11.5mm (0-13mm and 0-.500″ models)
Scale Surface: Hard-chrome plating
| Weight | 0.0000 kg |
|---|---|
| barcode | |
| Additional Information | Type: Differential Screw |
