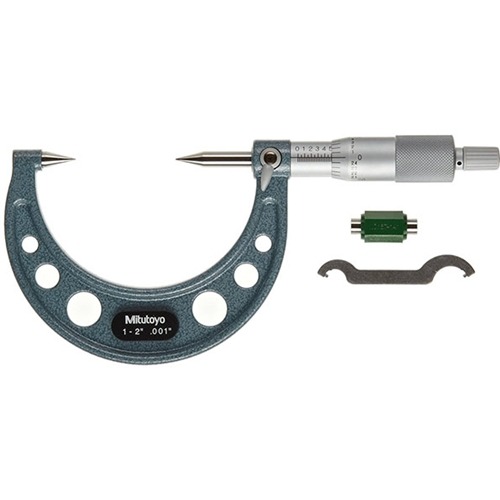

The Mitutoyo 112-238 Point Micrometer has the following specifications:
Range: 1-2″
Graduations: .001″
Accuracy: +/- .00015″
Point: 30°
Mass(g): 305
Remarks: Carbide Tip Points
Features:
Available in Metric and Inch models
Points are constructed of hardened steel or carbide depending on the model
Ratchet mechanism provides an audible click to ensure measurement is being performed at a constant pre-set force
Vernier scale graduated to .001″ on the thimble helps with taking precise outer dimension measurements
A spindle lock provides a secure locking of the measurement position for easier recording
Satin chrome finish on the sleeve and laser etched measurements on thimble for easier reading
Frame is constructed of high-grade steel and has a baked enamel finish for durability

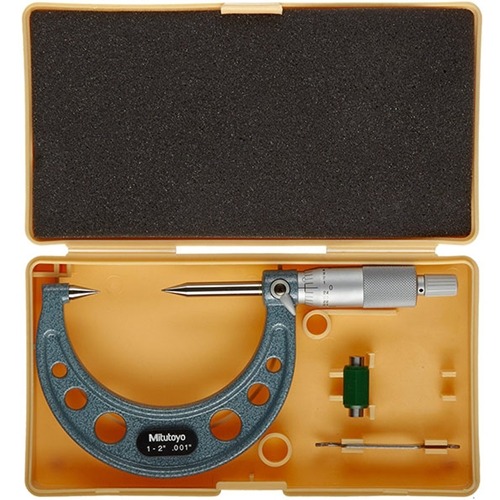

Supplied in fitted plastic case
The Mitutoyo 112-238 mechanical point micrometer features pointed tips on the anvil and spindle to measure small grooves, keyways and other, difficult-to-reach areas. Available in inch and metric measurements. The Mitutoyo pointed micrometer anvil and spline measures small groves on parts or workpieces along with keyways. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements.
| Weight | 0.3050 kg |
|---|---|
| barcode | |
| Additional Information | Here is the information formatted as requested: Digital/Analog: Analog |
