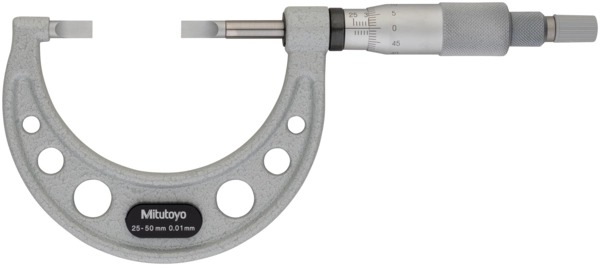

The Mitutoyo 122-102-10 Blade Micrometer has the following specifications:
Range: 25-50mm
Graduation: 0.01mm
Accuracy: ±3um
Remarks: Type A
Mass (g): 300
Features:
The anvil and the spindle have a blade for measuring the groove diameter of shafts, keyways and other hard-to-reach areas.
With ratchet stop for constant force.
Non-slip grip finish (digital models).
Speedy spindle feed of .4″/10mm /rev. (Quickmike type).
With a standard bar except 0 – 1″ and 0 -25mm model.
Supplied in fitted plastic case.
Technical Data:
Accuracy: Refer to the list of specifications
Resolution*: .00005″/0.001mm or 0.001mm
Graduation**: .0001″ or 0.01mm
Parallelism: .00012″ / 3um for models up to 3″ / 75mm | (3+R/100)um for models over 75mm, | R=max. range (mm) .00016″ for 4″ models
Display*: LCD
Battery*: SR44 (1 pc.), 938882
Battery life*: Approx. 2.4 years under normal use
*Digital models **Analog models
Function of Digital Model:
Origin-set, Zero / ABS, Data hold, Data output, inch/mm conversion (on inch/metric models only)
Function lock
Alarm: Low voltage, Counting value composition error
| Weight | 0.3000 kg |
|---|---|
| barcode | |
| Additional Information | Digital/Analog: Analog |
