$381.28$346.62 Ex. GST
Features:

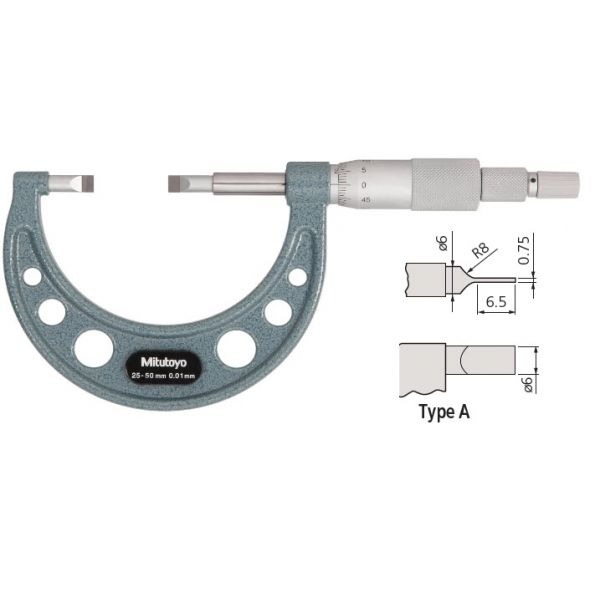

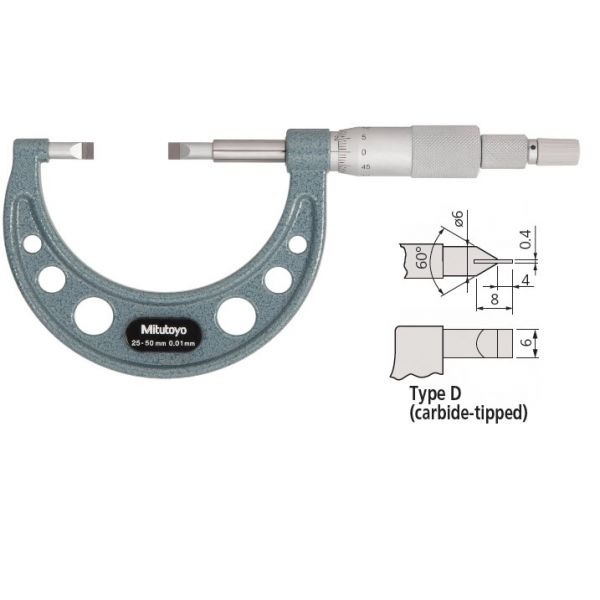

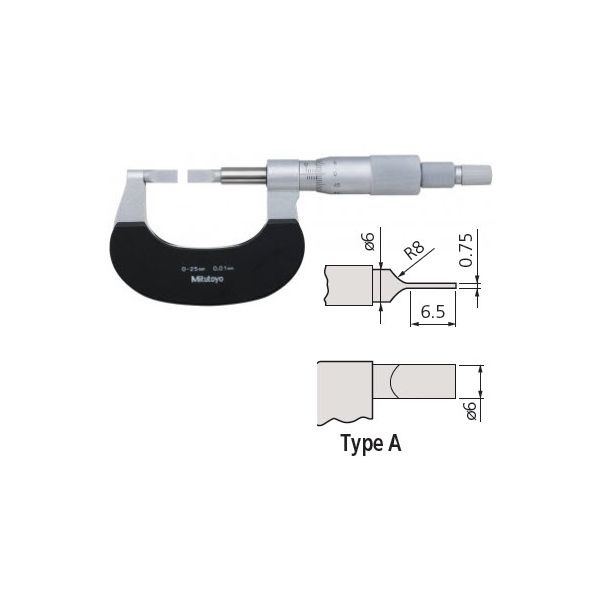

The anvil and the spindle have a blade for measuring
the groove diameter of shafts, keyways, and other hard-to-reach portions.
With Ratchet Stop for constant force.
With a standard bar except 0 -25mm and 0 – 1” model.
Supplied in fitted plastic case.
Technical Data
Accuracy: Refer to the list of specifications.
(excluding quantizing error for digital models)
Graduation**: 0.01mm or .0001″
Parallelism: 3쭠/ .00012” for models up to 75mm / 3”
(3+R/100)쭠for models over 75mm,
R=max. range (mm) .00016” for 4” models
| Weight | 0.3150 kg |
|---|---|
| barcode | |
| Additional Information | Digital/Analog: Analog |
