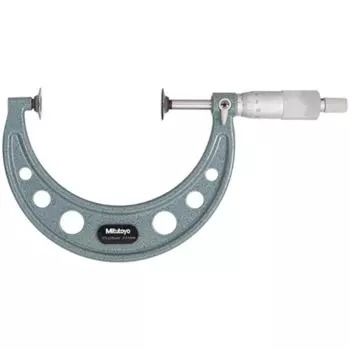

Mitutoyo Micrometer 123-108

Description

The Mitutoyo 123-108 Disk Micrometer has the following specifications:

Range: 175-200mm
Accuracy: +/- .008mm
Graduations: 0.01mm
Disk Diameter: 30mm

Features:
Diameter of measuring disks: .787″/20mm
Available in Metric and Inch models
Measurements are displayed with mechanical analog digit counter on micrometer’s frame
Measuring surfaces are constructed of carbide to reduce wear
Rotating Spindle
Ratchet mechanism provides an audible click to ensure measurement is being performed at a constant pre-set force
Satin chrome finish on the sleeve and laser etched measurements on thimble for easier reading
Frame has a non-slip finish for better grip in shop environments
Sizes over 0-1″ or 0-25mm include a micrometer standard.
Supplied in fitted plastic case
The Mitutoyo 123-108 mechanical counter disc micrometer is designed to measure the root tangent length of spur gears and helical gears within +/- 0.0002″ of accuracy. Measurements are displayed on an analog digit counter on the frame. The Mitutoyo disk micrometers with mechanical counter are available in inch or metric units. The Mitutoyo disc micrometer uses flat discs constructed of hardened steel in our own Japanese facilities to measure lengths of spur and helical gears. The flatness and thinness of the discs allow for reliable measurements in tight spaces. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements and eliminates over-speed error.

Technical Data:
Technology: Mechanical
SPC Output: No
Ratchet/Thimble: Ratchet Stop
