Mitutoyo Micrometer 124-177

Description

The Mitutoyo 124-177 Gear Tooth Micrometer has the following specifications:

Range: 100-125mm
Graduations: .01mm
Accuracy: +/- .005mm
Mass(g): 640

Features:
Interchangeable ball anvil-spindle tips for various gear modules (0.5-5.25) are optional
Measuring surfaces are constructed of carbide to reduce wear
Ratchet mechanism provides an audible click to ensure measurement is being performed at a constant pre-set force
Satin chrome finish on the sleeve and laser etched scale on thimble for easier reading
Frame has a non-slip finish for better grip in shop environments
Includes a standard bar except for 0-25mm model

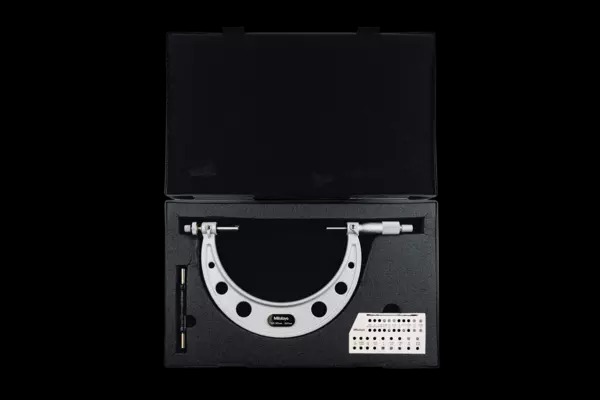

Supplied in fitted plastic case (models over 150mm have a wooden case)
The Mitutoyo 124-177 gear tooth micrometers measures gear modules using precision with optional interchangeable anvil-spindle tips to measure different sizes and types of gears. The Mitutoyo gear tooth micrometer series measures the over-pin diameter of gears. Precision carbide anvil and spindle ball-tipped measuring surfaces are interchangeable, with optional ball-tip faces allowing for measurement of various gear modules. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements.
