Mitutoyo Micrometer 125-106

Description

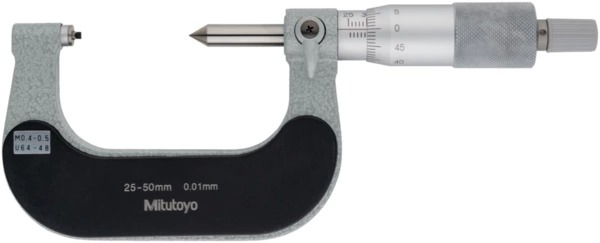

125-106 Mitutoyo Screw Thread Micrometer: 25-50mm

The Mitutoyo 125-106 Screw Thread Micrometer has the following specifications:

Range: 25-50mm
Graduations: 0.01mm
Metric Thread: 0.4-0.5mm
Unified Thread: 64-48 TPI
Features:

Measuring surfaces are constructed of carbide to reduce wear
Ratchet mechanism provides an audible click to ensure measurement is performed at a constant force
Satin chrome finish on the sleeve and laser etched scale on thimble for easier reading
Frame has a baked enamel finish for durability and longer lifespan
Includes a standard bar for zero-point adjust except for 0-25mm model

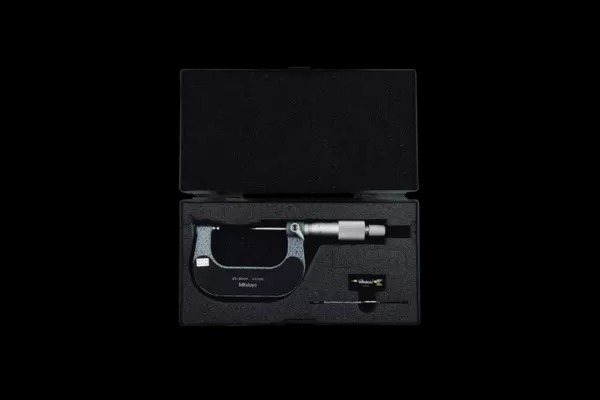

Supplied in fitted plastic case

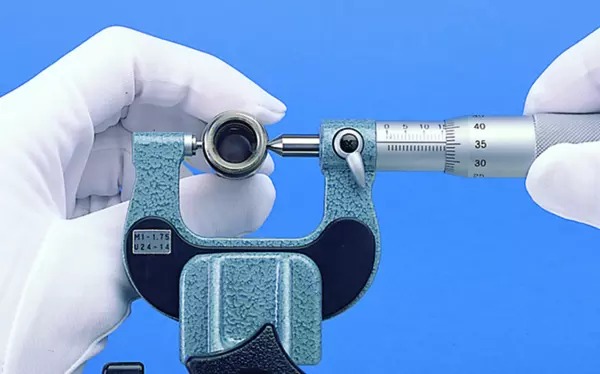

The Mitutoyo 125-106 mechanical screw thread micrometer makes measuring screw thread pitch diameters easy and highly accurate. The Mitutoyo screw thread micrometer features a hardened steel 60 degree anvil and conical spindle to easily and precisely measure pitch diameters of metric or unified screw threads. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements.

Technical Data:

Technology: Mechanical
Units: Metric
Ratchet/Thimble: Ratchet Stop
Spindle Feed Error: 3µm
