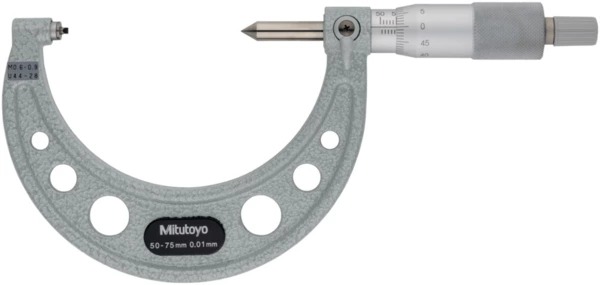

125-111 Mitutoyo Screw Thread Micrometer: 50-75mm
The Mitutoyo 125-111 Screw Thread Micrometer has the following specifications:
Range: 50-75mm
Graduations: 0.01mm
Metric Thread: 0.6-0.9mm
Unified Thread: 44-28 TPI
Features:
Measuring surfaces are constructed of carbide to reduce wear
Ratchet mechanism provides an audible click to ensure measurement is performed at a constant force
Satin chrome finish on the sleeve and laser etched scale on thimble for easier reading
Frame has a baked enamel finish for durability and longer lifespan
Includes a standard bar for zero-point adjust except for 0-25mm model

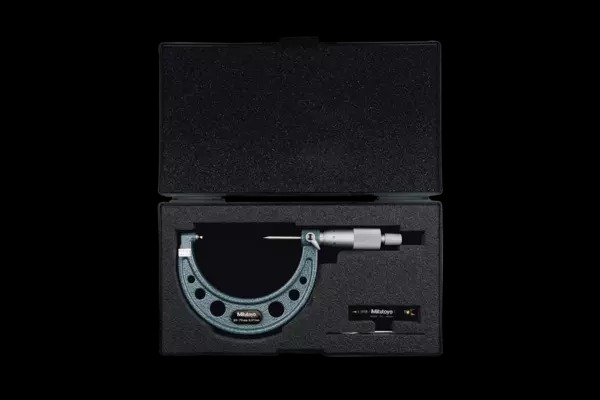

Supplied in fitted plastic case
The Mitutoyo 125-111 mechanical screw thread micrometer makes measuring screw thread pitch diameters easy and highly accurate. The Mitutoyo screw thread micrometer features a hardened steel 60 degree anvil and conical spindle to easily and precisely measure pitch diameters of metric or unified screw threads. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements.
Technical Data:
Technology: Mechanical
Units: Metric
Ratchet/Thimble: Ratchet Stop
Spindle Feed Error: 3µm
| Weight | 0.2600 kg |
|---|---|
| barcode | |
| Additional Information | Digital/Analog: Analog |
