$361.04$328.22 Ex. GST

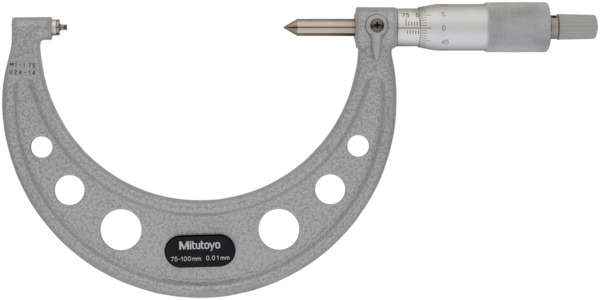

125-117 Mitutoyo Screw Thread Micrometer: 75-100mm
The Mitutoyo 125-117 Screw Thread Micrometer has the following specifications:
Range: 75-100mm
Graduations: 0.01mm
Metric Thread: 1-1.75mm
Unified Thread: 24-14 TPI
Features:
Measuring surfaces are constructed of carbide to reduce wear
Ratchet mechanism provides an audible click to ensure measurement is performed at a constant force
Satin chrome finish on the sleeve and laser etched scale on thimble for easier reading
Frame has a baked enamel finish for durability and longer lifespan
Includes a standard bar for zero-point adjust except for 0-25mm model
Supplied in fitted plastic case
The Mitutoyo 125-117 mechanical screw thread micrometer makes measuring screw thread pitch diameters easy and highly accurate. The Mitutoyo screw thread micrometer features a hardened steel 60 degree anvil and conical spindle to easily and precisely measure pitch diameters of metric or unified screw threads. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements.
Technical Data:
Technology: Mechanical
Units: Metric
Ratchet/Thimble: Ratchet Stop
Spindle Feed Error: 3µm
| Weight | 0.3300 kg |
|---|---|
| barcode | |
| Additional Information | Digital/Analog: Analog |
