Mitutoyo Micrometer 142-225

Description

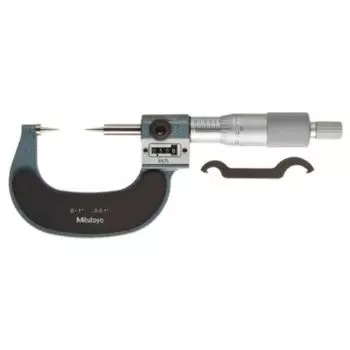

142-225 Mitutoyo 30° Mechanical Counter Point Micrometer: 0-1″

The Mitutoyo 142-225 Mechanical Counter Point Micrometer has the following specifications:

Range: 0-1″
Graduations: 0.001″
Accuracy: +/- .00015″
Point: 30°
Mass(g): 260g
Features:

Available in Metric and Inch models
Points are constructed of hardened steel or carbide depending on the model
Ratchet mechanism provides an audible click to ensure measurement is being performed at a constant pre-set force
A spindle lock provides secure locking of the measurement position for easier recording
Satin chrome finish on the sleeve and laser etched measurements on thimble for easier reading
Frame is constructed of high-grade steel and has a baked enamel finish for durability
Supplied in fitted plastic case
The Mitutoyo 142-225 mechanical counter point micrometer utilizes pointed tips on the anvil and spindle to measure small grooves, keyways and other, difficult-to-reach areas. Available in inch and metric measurements. The Mitutoyo point micrometer with mechanical counter utilizes pointed anvil and spline tips to measure small groves on parts or workpieces along with keyways. A mechanical digit counter displays readings to .001″ or .01mm for easier viewing among operators. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements.
