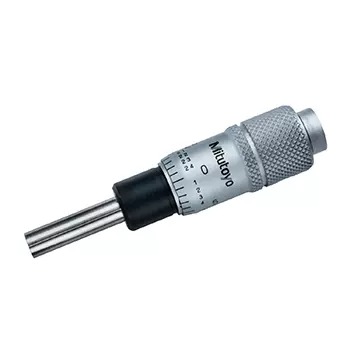

Mitutoyo Micrometer 148-831

Description

Micrometer Heads-Common Type-Small
The Mitutoyo smaller-sized standard micrometer head is shorter in length and range with a smaller diameter for easier placement in machines and fixtures. The Mitutoyo standard micrometer head comes in a smaller size to fit tighter spaces while providing accurate placement and measurements. The spindle is constructed of hardened tool steel, and the measuring face is precision lapped for better accuracy.

Available in Metric and Inch models
Smaller size mic head has a 13mm thimble diameter
Spindle range is 13mm / .5”
Mounting stem diameter is 9.5mm / .375”
Spindle diameter is 5mm / .197”
Mic head total lengths (at stroke end) are 71.5mm / 2.81” and 80.1mm / 3.15”
Reverse reading is available on some models
Spindle faces have lapped surfaces and are constructed of ultra-hard SKS3 steel and are available in spherical or flat types
Thimble is hard-chrome plated with laser-etched scales for easy-to-read measurements
Spindle screw threads are precision machined for incredibly precise movements
