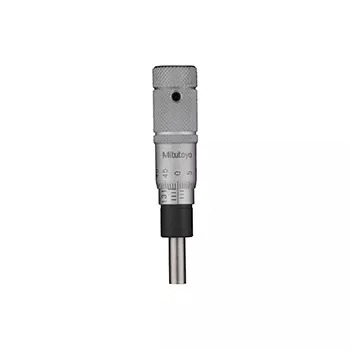

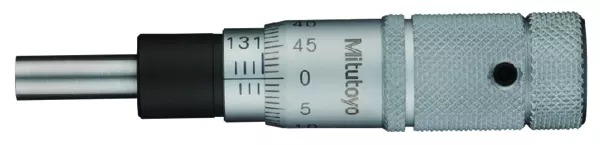

Mitutoyo Micrometer 148-863

Description

148-863 Mitutoyo Micrometer Head Common Type in Small Size with Zero Adjustment: 13mm-0

The Mitutoyo 148-863 Reverse Reading Micrometer Head in Small Size with Zero Adjustment has the following specifications:

Range: 13mm-0
Graduations: .01mm
Accuracy: +/- .002mm
Stem Diameter: 9.5mm
Stem: Plain
Spindle Face: Flat
Remarks: Reverse Reading
Features:

The thimble can be set to zero at any position by loosening the setscrew.
Technical Specifications:

Spindle Pitch: 0.5mm
Spindle Face: Flat or spherical of SKS3 (more than HRC60)
Scale Surface: Hard-chrome plating
Fixture Thickness for Clamp Nut: 6mm
