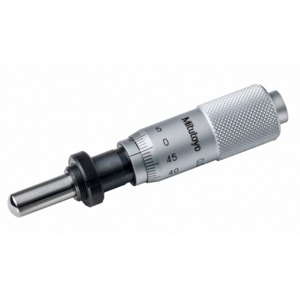

Micrometer Heads-Common Type-Small-Carbide
The Mitutoyo smaller-sized micrometer head features a hardened-steel spindle with a carbide measuring face for precise measurements and reduced wear. The Mitutoyo small-sized micrometer head delivers precise stage adjustments and measurements up to 0.5”. Its precision lapped, carbide-tipped spindle is exceptionally flat, accurate and durable. The thimble is hard-chrome plated with laser-etched scales for easy-to-read measurements.
Available in Metric and Inch modelsSmaller size mic head has a 15mm thimble diameter
Mounting Stem Diameter: 9.5 mm / .375”
Spindle Range: 15 mm / .5”
Spindle Diameter: 6.35 mm / .25”
Mic Head Total Length (at stroke end): 90.5 mm / 3.56”
Reverse Reading: Available on some models
Spindle Faces: Lapped surfaces constructed of ultra-hard SKS3 steel, available in spherical or flat types
Thimble: Hard-chrome plated with laser-etched scales for easy-to-read measurements
| Weight | 0.0000 kg |
|---|---|
| barcode | |
| Additional Information | Model: Micrometer Head |
