Mitutoyo Micrometer 149-812

Product Code: 149-812

$96.72$87.93 Ex. GST

Product Code: 149-812 SKU 149-812 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

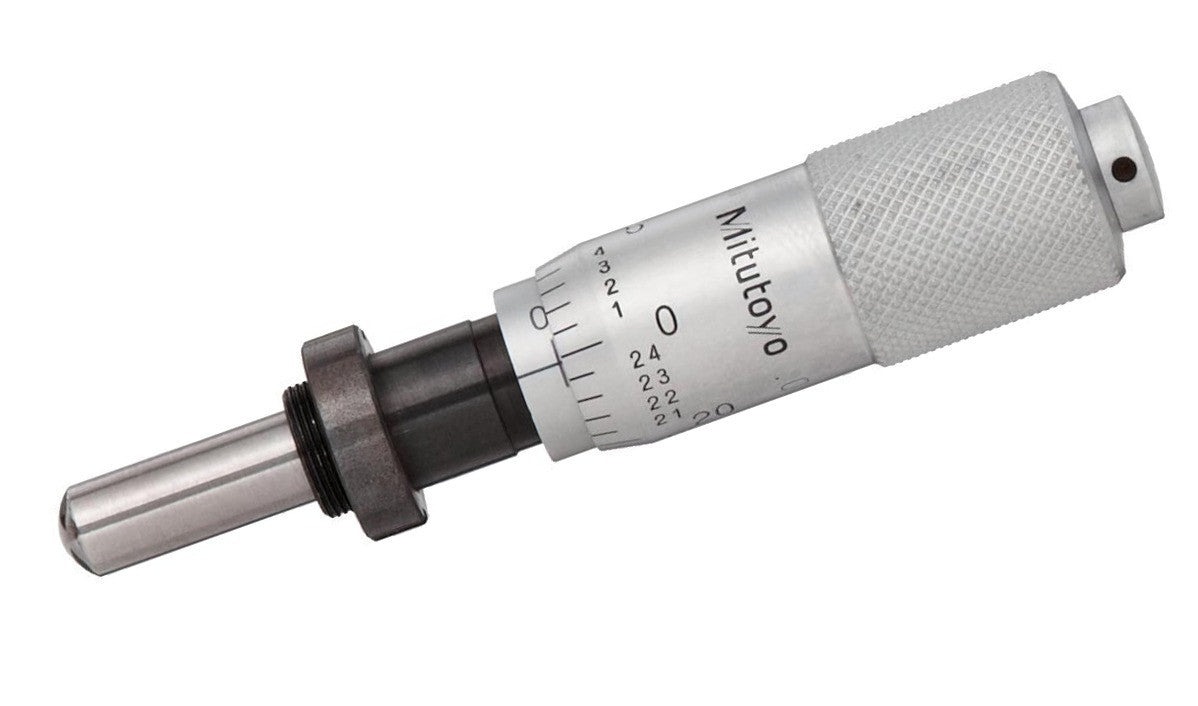

Mitutoyo Carbide Faced Micrometer Head
Carbide faces on these mic heads reduce wear and increased mic head life.

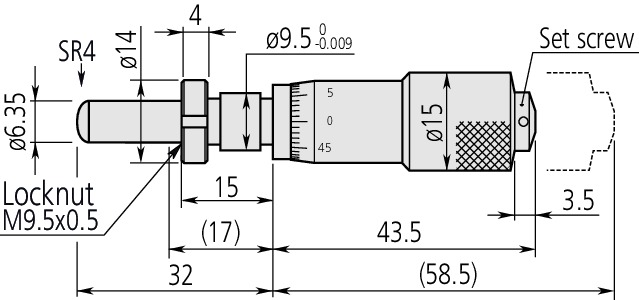

Specifications include…

Graduation .001″
Range 0-.500″
Stem DIA .375″
Stem with Clamp Nut
Spindle Face Spherical (SR4)

Additional information

Weight 0.0600 kg
barcode
Additional Information

Range: 0 – 0.5"
Spindle end: Spherical (SR4)
Stem Ø: .375"
Stem: w/ clamp nut
Fixture thickness for clamp nut: 11.5 mm
Mass: 60 g
Measuring surfaces: Carbide-tipped
Spindle pitch: 0,025"
Maximum Permissible Error J MPE: ±0,0001"
Graduation: 0,001"
Digital/Analog: Analog
Inch-Metric: Inch
