$97.59$88.72 Ex. GST

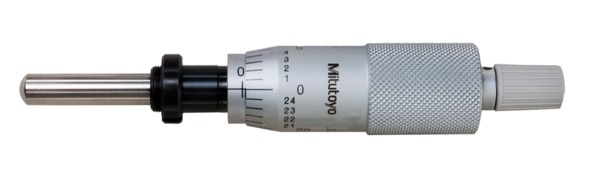

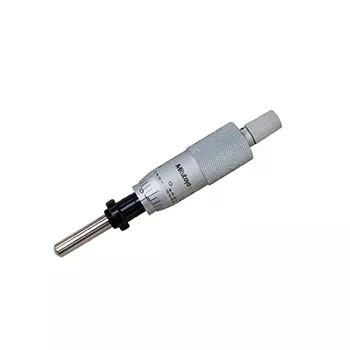

150-812 Mitutoyo Micrometer Head Common Type in Middle Size: 0-1″
The Mitutoyo 150-812 Common Type in Middle Size Micrometer Head has the following specifications:
Range: 0-1″
Graduations: .001″
Accuracy: +/- .0001″
Stem Diameter: .375″
Stem: With Clamp Nut
Spindle Face: Spherical (SR4)
Features:
Style: Common Type in Middle Size
Ratchet stop for constant force.
Long spindle type is available for a variety of applications.
Carbide tipped measuring face.
Specifications:
Available Graduations: .01mm, .001mm, .001″, .0001″
Spindle Pitch: 0.5mm
Spindle Face:
Flat (carbide tip): More than HRA90
Spherical (SR4)
Long Spindle Type: More than HRC60
Scale Surface: Hard-chrome plating
Fixture Thickness for Clamp Nut: 11.5mm
| Weight | 0.1000 kg |
|---|---|
| barcode | |
| Additional Information | Digital/Analog: Analog |
