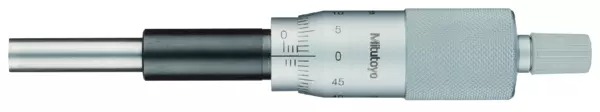

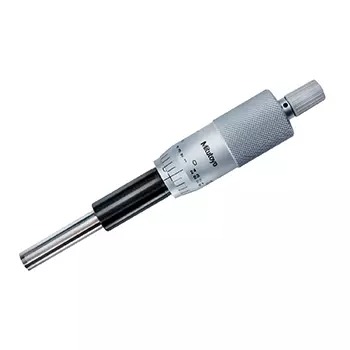

Mitutoyo Micrometer 151-240

Description

151-240 Mitutoyo Micrometer Head Common Type in Middle Size w/ 8mm Spindle: 0-1″

The Mitutoyo 151-240 Micrometer Head – Common Type in Middle Size has the following specifications:

Range: 0-1″
Graduations: .001″
Accuracy: +/- .0001″
Stem Diameter: 0.500″
Spindle Diameter: 8mm
Stem: Plain
Spindle Face: Flat (carbide tip)
Features:

8mm diameter spindle for heavy duty use.
Ratchet stop for constant force.
Carbide tipped measuring face.
Specifications:

Available Graduations: .01mm, .001mm, .001″, .0001″
Spindle Pitch: 0.5mm
Spindle Face: Flat with carbide tip (more than HRA90) lapped surface
Scale Surface: Hard-chrome plating
Fixture Thickness for Clamp Nut: 25.5mm
