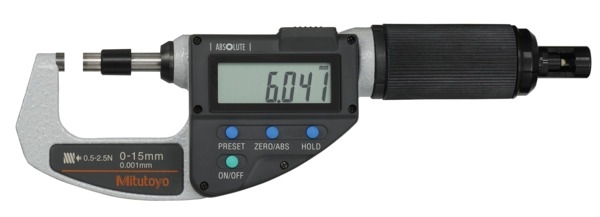

Mitutoyo Micrometer 227-201-20

Description

The Mitutoyo 227-201-20 ABSOLUTE Digimatic Micrometer with adjustable measuring force has the following specifications:
Range: 0-15mm
Resolution: .001mm
Accuracy: +/- .002mm
Measuring Force: 0.5-2.5 (0.5, 1.0, 1.5, 2, 2.5) N
Mass(g): 300

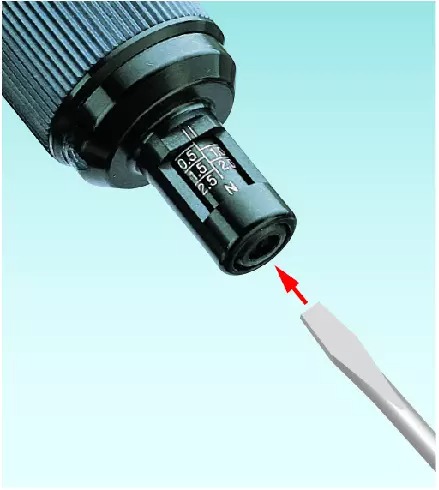

***Adjustable Measuring Force***

Features:
Two different adjustable measuring forces are available: 0.5-2.5N or 2-10N
The measurement-value hold function automatically retains the data at a specified measuring force, ensuring accuracy
Non-rotating spindle and the new ratchet friction thimble
Speedy spindle feed of 10mm/rev. and .4”/rev for inch/metric model
ABSOLUTE linear scale eliminates the need for setting the origin point every time the micrometer is powered on
Elimination of overspeed errors provides a higher measurement reliability and repeatability
Available with SPC data output capabilities
Functions include Origin Set, Zero/ABS, Hold, Function Lock, Auto Power On/Off, and inch/mm conversion (on inch/metric models only)
Alarm: Low Voltage, Counting Value Composition Error
Includes a standard bar to set the origin point (for models with 15-30mm / .6-1.2″ range)
Supplied in fitted plastic case
Constant and low measuring force mechanism in the thimble.

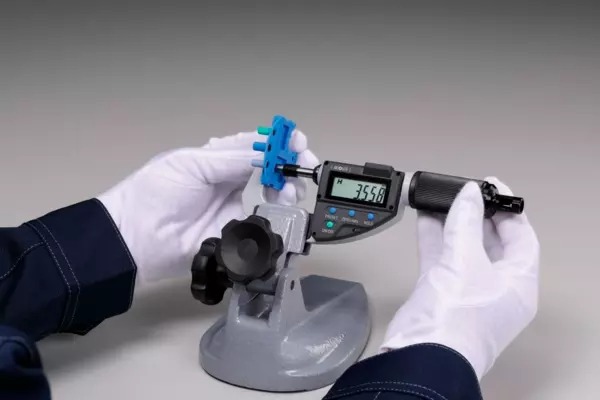

The ABSOLUTE Digimatic micrometer features a constant and low measuring force mechanism in the thimble for measuring applications such as wire, paper, plastic and rubber parts. The 227-201-20 Mitutoyo ABSOLUTE Digimatic micrometer’s adjustable measuring force capabilities accommodates measurements of both soft and hard materials in a variety of applications. The repeatability of the automatically applied measuring force allows operators of all skill levels to perform highly accurate measurements, therefore saving time and money.
