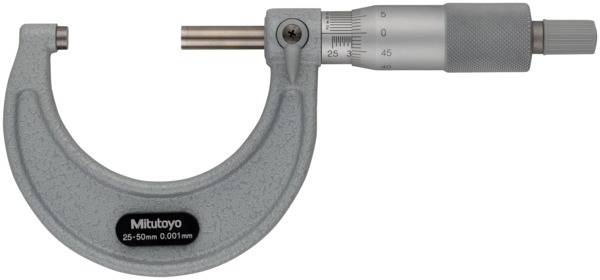

Mitutoyo Micrometer A 103-130

Product Code: 103-130

$163.64$148.76 Ex. GST

Product Code: 103-130 SKU 103-130 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

A Mitutoyo basic, cost effective, non-digital micrometer with a ratchet stop to guarantee repeatable measurement. High resolution provided by a vernier scale on sleeve

Additional information

Weight 0.2150 kg
barcode
Additional Information

Inch-Metric: Metric
Range: 25 – 50 mm
Graduation: 0.001 mm
Maximum Permissible Error J MPE: ±2 µm
Flatness: 0.6 µm
Parallelism: 2 µm
Digital/Analog: Analog
Measuring face: Carbide-tipped, micro-lap finish
Measuring spindle: With spindle lock, ø6.35 mm (≤300 mm) / ø8 mm (>300 mm), spindle pitch 0.5 mm
Scale: Thimble and sleeve satin chrome finish, ø18 mm
Measuring force: 5 – 10 N
Delivered: Including box, setting standard (from 25 mm upward), key, certificate of inspection (0-50 mm range)
Mass: 215 g

Brand

Mitutoyo
