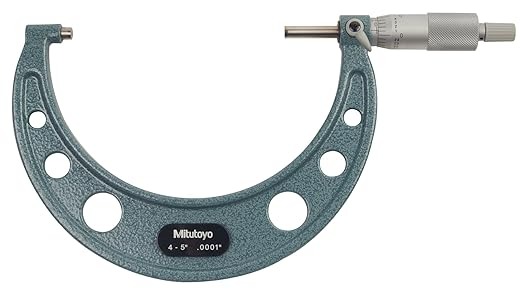

Mitutoyo Micrometer A 103-219

Description

The Mitutoyo 103-219 outside micrometer has the following specifications:

Range: 4-5″
Graduations: .0001″
Accuracy: +/- .00015″
Mass (g): 515
With Ratchet Stop

Features:
Frame has a hammer tone baked enamel finish for durability
Scale is laser etched on thimble and sleeve
Carbide facing on the spindle and anvil resists wear to keep surfaces flatter with longer accuracy
Speeder is always available for quick rotation of the spindle
Comes with standard bar except for 0-1″
Supplied in a fitted plastic case
The Mitutoyo outside micrometers series 103 features either a ratchet stop or friction thimble that applies constant measuring force on a workpiece for exact repetitive readings. Available in metric and inches. The Mitutoyo outside micrometer is ideal for measuring metal and non-metal workpieces. A ratchet-stop mechanism on the 103-219 provides uniform pressure on a workpiece for precise, repeatable measurements. The friction thimble models allow for constant-force measurement for single handed operation.
