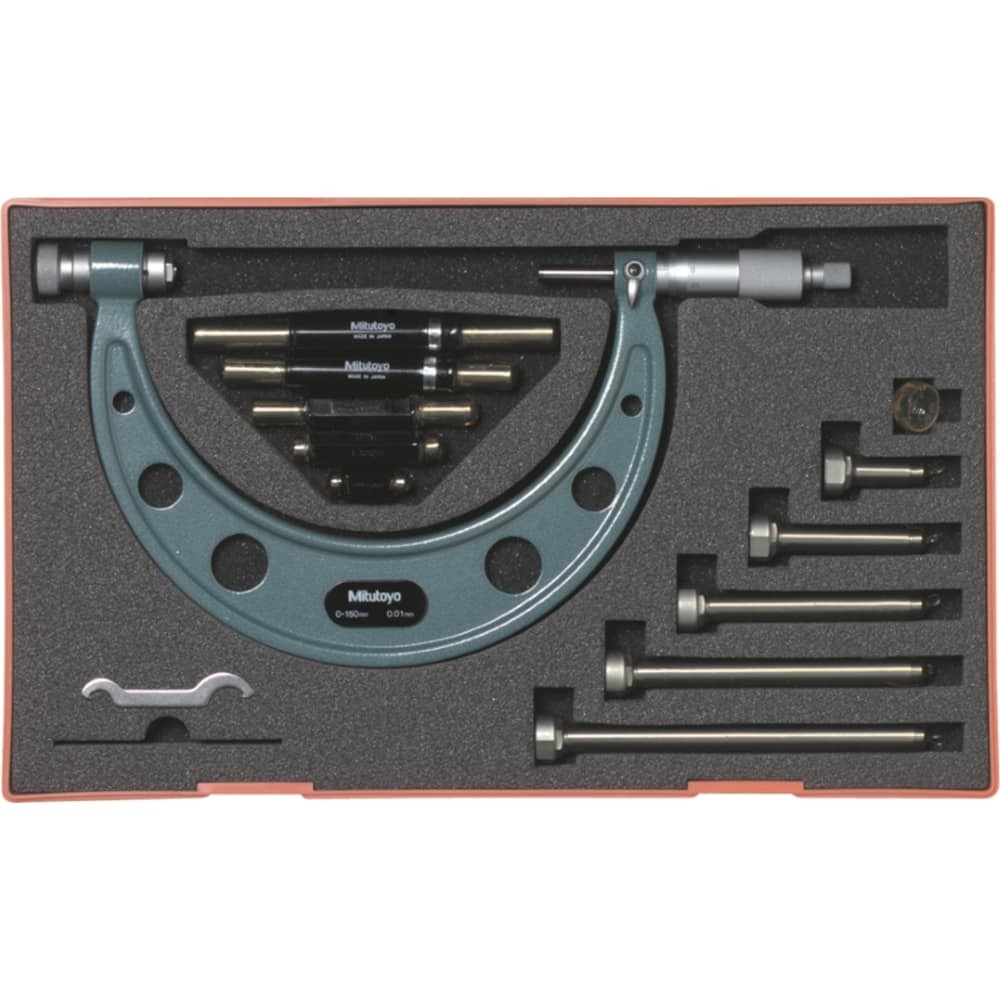

Mitutoyo Micrometer A 104-162

Product Code: 104-162

$557.71$507.01 Ex. GST

Product Code: 104-162 SKU 104-162 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

A Mitutoyo non-digital micrometer provided with easily interchangeable anvils to enable a wide measuring range from one instrument. A ratchet stop guarantees repeatable measurement.

Features:
Wide measuring range equivalent to four or six standard micrometers
Easy interchangeable anvils in 25mm steps permit a range of measurements
Ratchet stop for consistent measurements
Glare-free satin chrome finished sleeve and thimble with clear, crisp graduations
Measuring faces: carbide tipped spindle and steel hardened anvil
Setting standards and spanner supplied with each micrometer in a fitted case

Additional information

Weight 1.3500 kg
barcode
Additional Information

Digital/Analog: Analog
Delivered: Including box, key, setting standard (4 pcs.), anvils (4 pcs.)
Inch-Metric: Inch
Range: 2 – 6 "
Graduation: 0.001"
Limit of error: ±0.0003"
Spindle feed error: 0.00015 inch
Flatness: 0.000024"
Parallelism: 0.00012"
Measuring face: Carbide-tipped micro-lap finish spindle and hardened steel anvil
Measuring spindle: With spindle lock, ø6.35 mm (≤300 mm) / ø8 mm (>300 mm), spindle pitch 0.5 mm
Scale: Thimble and sleeve satin chrome finish, ø18 mm
Measuring force: 5 – 10 N
Setting standard: 4 (2, 3, 4, 5")
Interchangeable anvils: 4
Mass: 1.35 kg

Brand

Mitutoyo
