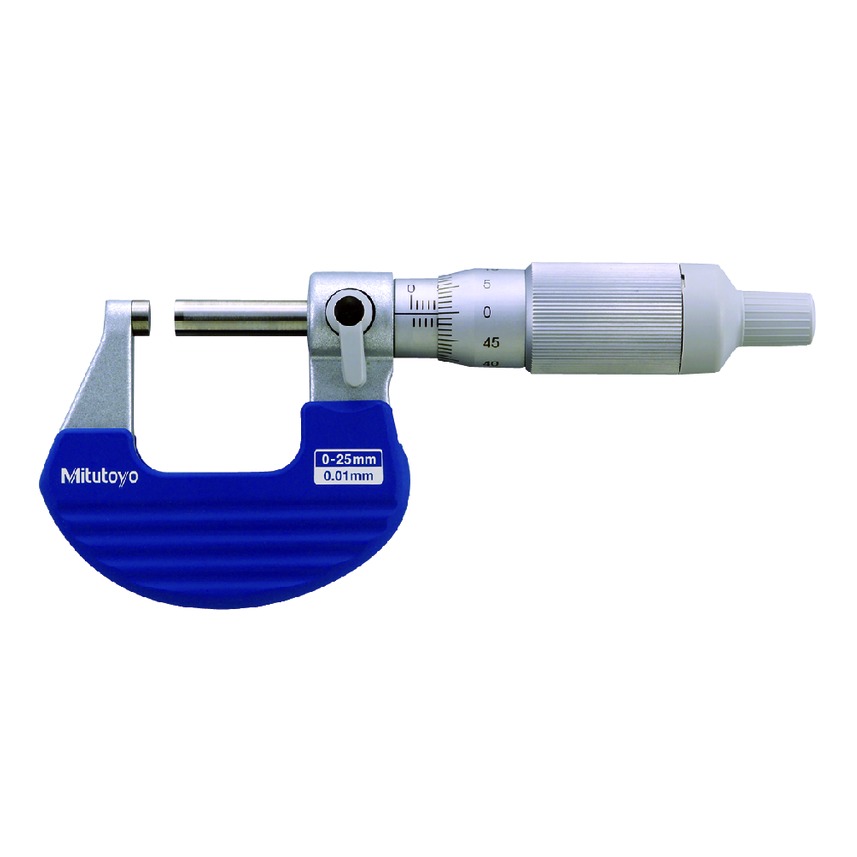

Mitutoyo Micrometer B 102-701

Description

The Mitutoyo 102-701 Ratchet Thimble Micrometer has the following specifications:

Range: 0-25mm
Graduation: 0.01mm
Accuracy: +/- 2um

Features:

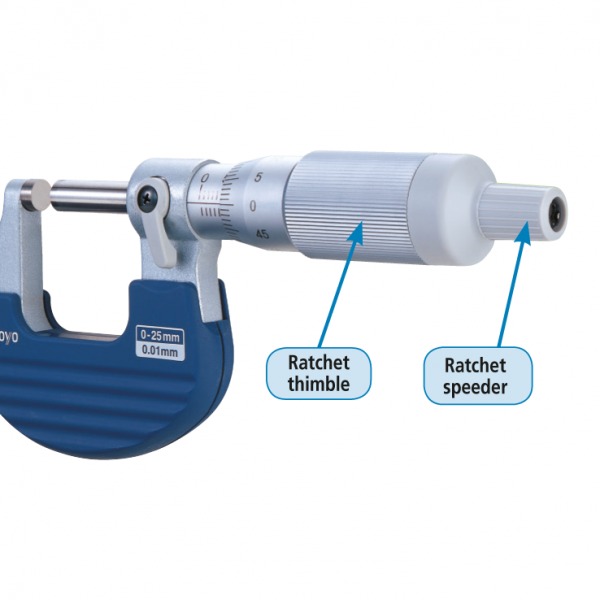

Ratchet functions works both from the thimble and speeder allowing easy one-handed operation
Carbide measuring faces on the spindle and anvil resists wear to keep surfaces flatter with longer accuracy
Heat-insulated frame minimalizes thermal expansion for consistent measurements in different environments
Speeder is always available for quick rotation of the spindle
Measuring force is 5-10N
Includes a standard bar except for 0-1″/25mm models
Provided with Mitutoyo Certificate of Inspection
Supplied in a plastic, fitted case

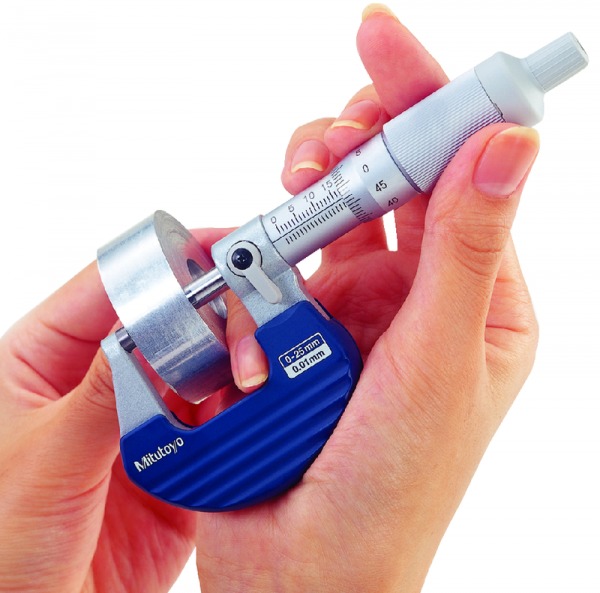

The Mitutoyo ratchet thimble outside micrometer provides greater accuracy even with one-handed operation. The ratchet thimble on Mitutoyo’s 102-701 mechanical outside micrometer delivers a smoother, constant measuring force on the spindle to ensure accurate, repeatable measurements. The combination of the ratchet thimble and speeder enables a rapid spindle feed when measuring a wide range of different dimensions or easier, one-handed measurements.
