Mitutoyo Micrometer B 102-711

Description

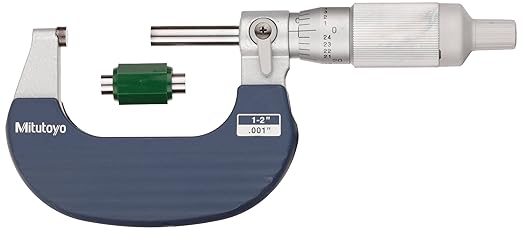

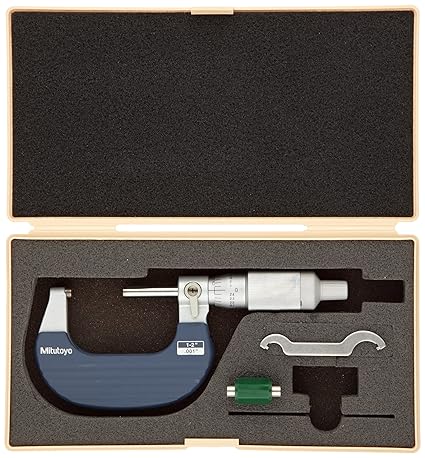

The Mitutoyo 102 series outside micrometer has a vernier scale in inch units for taking precise outside diameter (OD) measurements, and a ratchet thimble mechanism helps provide uniform pressure for precise, repeatable measurement. The micrometer’s frame is tapered for measuring narrow slots and tight spaces, has a baked enamel finish for protection and durability and a friction grip. The vernier scale on the thimble and sleeve is graduated to 0.001”, with a satin chrome rust- and glare-resistant finish. The spindle and anvil have flat measuring faces and are carbide-tipped for wear resistance. A spindle lock helps provide secure locking of the measurement position. The micrometer comes with a plastic case for storage.

Micrometers are precision measuring instruments that use a calibrated screw to measure small distances. These measurements are translated into large rotations of the screw that are then able to be read from a scale or a dial. Micrometers are typically used in manufacturing, machining, and mechanical engineering. There are three types of micrometer: outside, inside, and depth. Outside micrometers may also be called micrometer calipers, and are used to measure the length, width, or outside diameter of an object. Inside micrometers are typically used to measure interior diameter, as in a hole. Depth micrometers measure the height, or depth, of any shape that has a step, groove, or slot.
