Mitutoyo Micrometer B 103-143-10

Product Code: 103-143-10

$261.46$237.69 Ex. GST

Product Code: 103-143-10 SKU 103-143-10 Categories ,

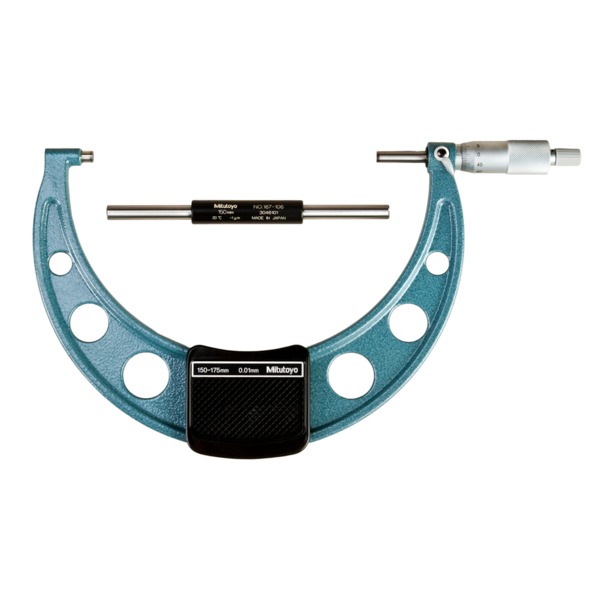

Mitutoyo Micrometer B 103-143-10

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Mitutoyo-103-143-10: Lightweight Workshop Design With Baked-Enamel-Finished Frame. Equipped With Ratchet Stop For Constant Measuring Force.
Product Type: Outside Micrometer
Range: 150-175mm
Increment: 0.01mm
Sub Type: Ratchet Stop

Additional information

Weight 0.7200 kg
Dimensions Length 21.5cm x Width 34.5cm x Depth 4.2cm
barcode
Additional Information

Digital/Analog: Analog
Delivered: Including box, key, setting standard
Inch-Metric: Metric
Range: 150 – 175 mm
Graduation: 0.01 mm
Max. Permissible Error J MPE: ±4 µm
Flatness: 0.6 µm
Parallelism: 3 µm
Measuring face: Carbide-tipped, micro-lap finish
Measuring spindle: With spindle lock, ø6.35 mm (≤300 mm) / ø8 mm (>300 mm), spindle pitch 0.5 mm
Scale: Thimble and sleeve satin chrome finish, ø18 mm
Measuring force: 5 – 10 N
Mass: 720 g

Brand

Mitutoyo
