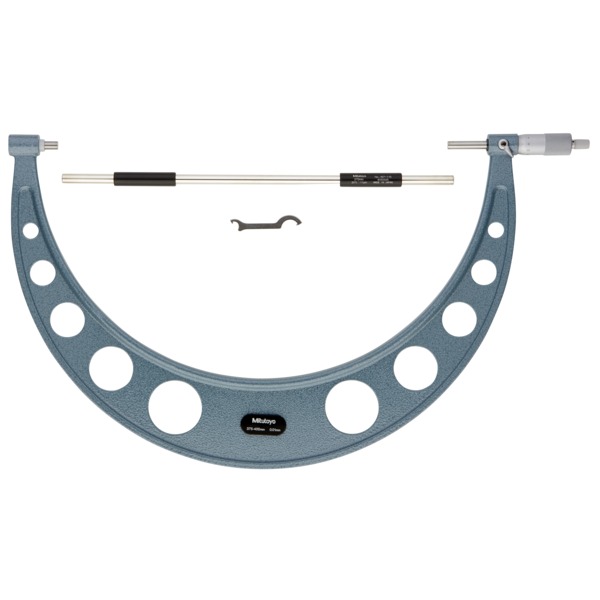

Mitutoyo Micrometer B 103-152

Product Code: 103-152

$605.41$550.37 Ex. GST

Product Code: 103-152 SKU 103-152 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

A Mitutoyo basic, cost effective, non-digital micrometer with a ratchet stop to guarantee repeatable measurement.

Lightweight Workshop Design With Baked-Enamel-Finished Frame. Equipped With Ratchet Stop For Constant Measuring Force.
Product Type: Outside Micrometer
Range: 375-400mm
Increment: 0.01mm
Sub Type: Ratchet Stop

Additional information

Weight 2.4550 kg
Dimensions Length 38.6cm x Width 63.4cm x Depth 4.8cm
barcode
Additional Information

Digital/Analog: Analog
Delivered: Including box, key, setting standard
Inch-Metric: Metric
Range: 375 – 400 mm
Graduation: 0.01 mm
Max. Permissible Error J MPE: ±7 µm
Flatness: 1 µm
Parallelism: 6 µm
Measuring face: Carbide-tipped, micro-lap finish
Measuring spindle: With spindle lock, ø6.35 mm (≤300 mm) / ø8 mm (>300 mm), spindle pitch 0.5 mm
Scale: Thimble and sleeve satin chrome finish, ø21 mm
Measuring force: 10 – 15 N
Mass: 2455 g

Brand

Mitutoyo
