Mitutoyo Micrometer B 103-160

Product Code: 103-160

$875.66$796.05 Ex. GST

Product Code: 103-160 SKU 103-160 Categories ,
Mitutoyo Micrometer B 103-160

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

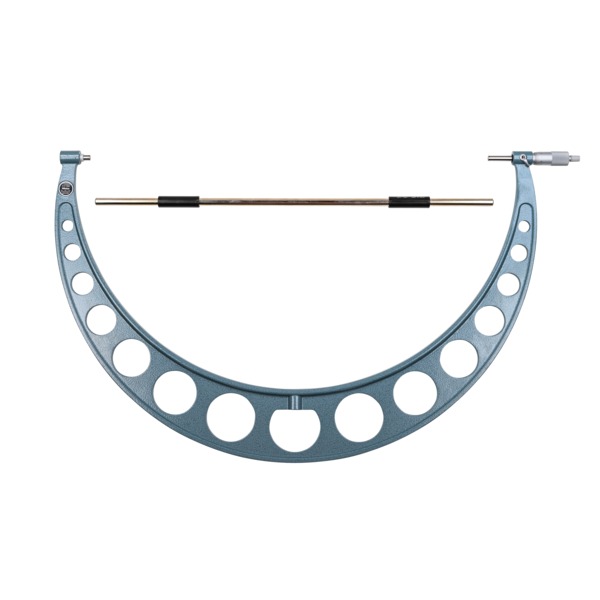

Mitutoyo-103-160: Lightweight Workshop Design With Baked-Enamel-Finished Frame. Equipped With Ratchet Stop For Constant Measuring Force.
Product Type: Outside Micrometer
Range: 575-600mm
Increment: 0.01mm
Sub Type: Ratchet Stop

Additional information

Weight 4.5250 kg
Dimensions Length 51.3cm x Width 84cm x Depth 6.1cm
barcode
Additional Information

Digital/Analog: Analog
Delivered: Including box, key, setting standard
Inch-Metric: Metric
Range: 575 – 600 mm
Graduation: 0.01 mm
Max. Permissible Error J MPE: ±9 µm
Flatness: 1 µm
Parallelism: 8 µm
Measuring face: Carbide-tipped, micro-lap finish
Measuring spindle: With spindle lock, ø6.35 mm (≤300 mm) / ø8 mm (>300 mm), spindle pitch 0.5 mm
Scale: Thimble and sleeve satin chrome finish, ø21 mm
Measuring force: 10 – 15 N
Mass: 4525 g

Brand

Mitutoyo
