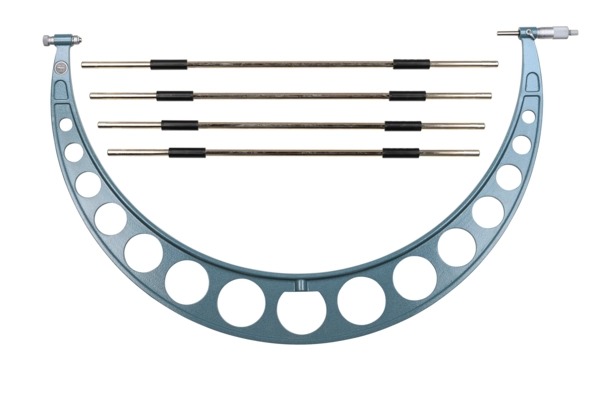

Mitutoyo Micrometer B 104-145A

Description

The Mitutoyo 104-145A Outside Micrometer with Interchangeable Anvils has the following specifications:

Range: 600-700mm
Graduations: .01mm
Mass(kg): 7.72
Remarks: With 4 Anvils & 4 Standards
With Ratchet Stop

Features:
Available in inch and metric models
Ratchet mechanism provides an audible click to ensure measurement is being performed at a constant pre-set force
Scale is laser etched on thimble for quick and easy reading
Carbide facing on the spindle resists wear to keep surfaces flatter with longer accuracy
Speeder is always available for quick rotation of the spindle

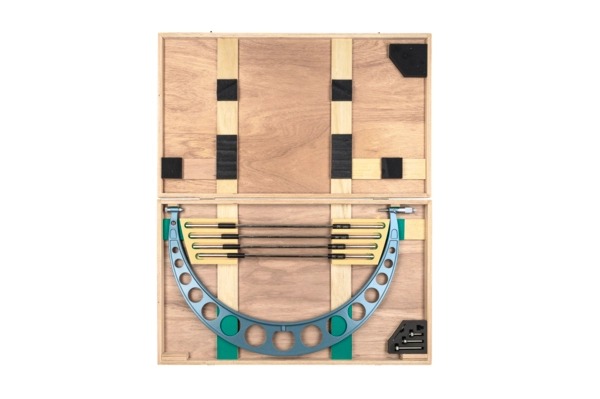

Supplied in a fitted wooden case
The Mitutoyo outside micrometer with interchangeable anvils features a ratchet stop function and interchangeable anvils for measuring a wide range of workpiece sizes and material types with precision. This series of micrometers with interchangeable anvils are available in inch and metric measurements. The Mitutoyo 104-145A outside micrometer is ideal for measuring metal and non-metal workpieces by controlling the amount of force applied by the spindle. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements. Interchangeable anvils allow for measuring a wide range of workpiece sizes.
