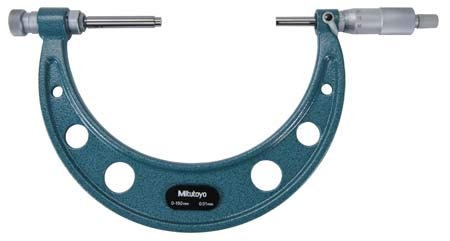

Mitutoyo Micrometer B 104-150

Description

The Mitutoyo 104-150 micrometer has interchangeable anvils.

Features:
IP65 water/dust protection 340 series models with a range up to 12in/300mm.
Wide measuring range with interchangeable anvils.
With a Ratchet Stop for constant force.
Supplied with zero-setting standards bar for each range.
With SPC output (Series 340).
Supplied in fitted wooden case.

Technical Data:
Accuracy: ±(4+R/75)Ìm, R=max. range (mm), [.00016″ ±.00004 (L/3)”] L = Max Range (Inch)
Resolution*: 0.001mm or .0001″/0.001mm (340-351-10: .00005″/0.001mm)
Graduation**: 0.01mm
Flatness: 0.6µm / .000024″ for models up to 300mm / 12″; 1Ìm / .00004″ for models over 300mm / 12″
Parallelism: 2µm / .00008″ for models up to 75mm / 3″; 3Ìm / .00012″ for models up to 150mm / 6″; (2+R/100)µm for models over 150mm, R=max. range (mm); [.00008″ ± .00004 (L/4)”] L= Max range (inch)
Measuring faces: Carbide tipped
Display*: LCD
Battery*: SR44 (1 pc.), 938882
Battery life*: Approx. 1.2 years under normal use
Dust/Water protection level*: IP65
*Digital models **Analog models

Function of Digital Model:
Zero-setting, Data hold, Preset, Data output, inch/mm conversion (inch/mm models)
Alarm: Low voltage, Counting value composition error
***Function Lock
***2 Presets
***100-300mm/4-12″
