Mitutoyo Micrometer B 111-118

Description

The Mitutoyo 111-118 Spline Micrometer has the following specifications:

Range: 75-100mm
Graduations: .01mm
Accuracy: +/- .004mm
Remarks: Type A Anvils
Mass(g): 500
With Ratchet Stop

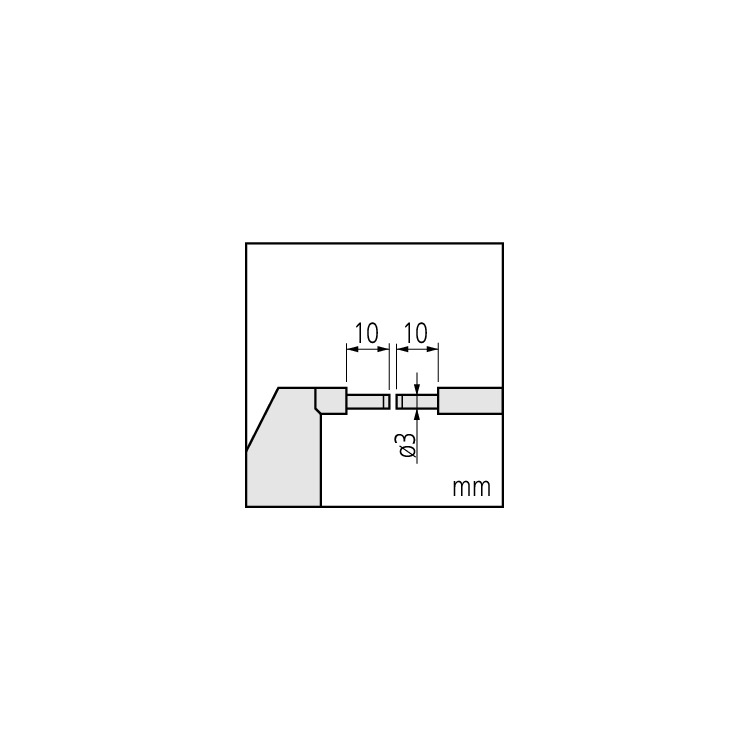

Anvil Dimensions:
Type A: 3mm Diameter, 10mm Length
Type B: 2mm Diameter, 5mm Length

Features:
Available in Inch and Metric models
Ratchet mechanism provides an audible click to ensure measurement is being performed at a constant pre-set force
Ratchet-stop mechanism provides uniform pressure for precise, repeatable measurements
Carbide facing on the spindle and anvil resists wear to keep surfaces flatter with longer accuracy
Frame has a baked enamel finish to resist corrosion
Scale is laser etched on thimble for easier reading
Includes a standard bar except for 0-1″ or 0-25mm models
Supplied in fitted plastic case

Technical Data:
Technology: Mechanical
Ratchet/Thimble: Rachet Stop
Measuring Force: 5-10N
Measuring Faces: Carbide tipped
