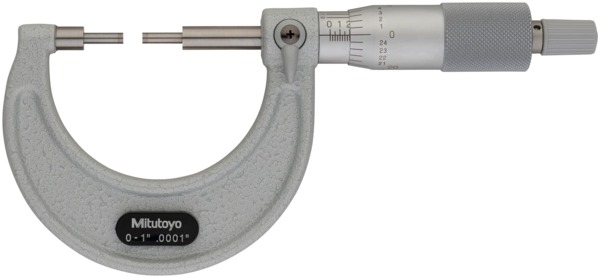

Mitutoyo Micrometer B 111-166

Description

The Mitutoyo 111-166 Spline Micrometer has the following specifications:

Range: 0-1″
Graduations: .0001″
Accuracy: +/- .00015″
Remarks: Type A Anvils
Mass(g): 205
With Ratchet Stop
.0001″ reading is obtained on the vernier

Anvil Dimensions:
Type A: .118″/3mm Diameter, .393″/10mm Length
Type B: .078″/2mm Diameter, .196″/5mm Length

Features:
Available in Inch and Metric models
Ratchet mechanism provides an audible click to ensure measurement is being performed at a constant pre-set force
Ratchet-stop mechanism provides uniform pressure for precise, repeatable measurements
Carbide facing on the spindle and anvil resists wear to keep surfaces flatter with longer accuracy
Frame has a baked enamel finish to resist corrosion
Scale is laser etched on thimble for easier reading
Includes a standard bar except for 0-1″ or 0-25mm models
Supplied in fitted plastic case

Technical Data:
Technology: Mechanical
Ratchet/Thimble: Rachet Stop
Measuring Force: 5-10N
Measuring Faces: Carbide tipped
The Mitutoyo 111-166 mechanical spline micrometer features a reduced diameter anvil and spindle for measuring splined shafts, slots and keyways. The Mitutoyo spline micrometer is ideal for measuring minor indents, slots, spline shafts and keyways on workpieces. The anvil and spindle each have reduced diameters to measure internal features with high accuracy. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements.
