Mitutoyo MICROMETER CALIPER TYPE 343-251-30

Product Code: 343-251-30

$1,056.14$960.13 Ex. GST

Product Code: 343-251-30 SKU 343-251-30 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Mitutoyo 343-251-30 Offers

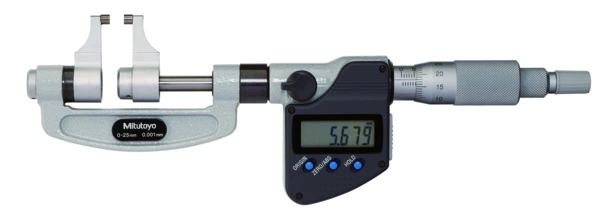

The Mitutoyo 343-251-30 Series 343 Digital Caliper-Type Micrometer features a ratchet stop for constant force. The carbide-tipped measuring face provides lasting strength, and the digital micrometer comes with an LCD screen that helps you read data. Comes in a fitted, plastic case.

Features

LCD screen allows easy viewing
Ratchet stop for consistent force
Features an SPC output
Carbide-tipped measuring face helps ensure lasting use
Functions include origin-set, zero-setting, data hold and data output
Low voltage and counting value composition error alerts

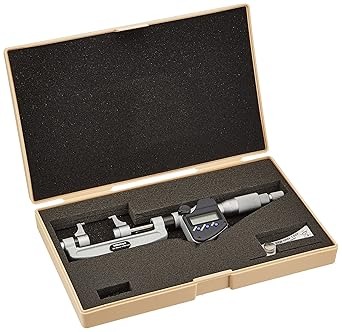

Comes with a fitted, plastic case for transport and includes a standard bar

Additional information

Weight 0.3400 kg
Dimensions Length 8.51cm x Width 10.59cm x Depth 13.31cm
barcode
Additional Information

Digital/Analog: Digital

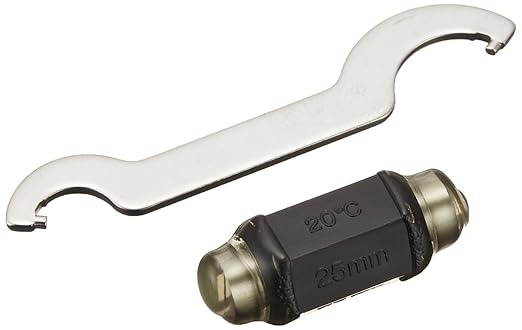

Delivered: Including box, spanner, setting standard, 1 SR44 battery
Inch-Metric: Metric
Range: 25 – 50 mm
Digital step: 0.001 mm
Max. Permissible Error J MPE: ±6 µm
Planned: 0.3 µm
Parallelism: 3 µm
Display: LCD, character height 7.5 mm
Measuring face: Carbide-tipped, micro-lap finish
Measuring spindle: With spindle lock, ø6.35 mm, spindle pitch 0.5 mm
Scale: Thimble and sleeve satin chrome finish, ø18 mm
Measuring force: 1 – 6 N
Power supply: 1 battery SR-44
Battery life: Approx. 2.4 years
ORIGIN: Yes
ABS / INC (INC ZERO): Yes
Auto Power OFF after 20 min. non use: Yes
Low voltage alarm: Yes
Function lock: Yes
HOLD: Yes
Mass: 340 g

Brand

Mitutoyo
