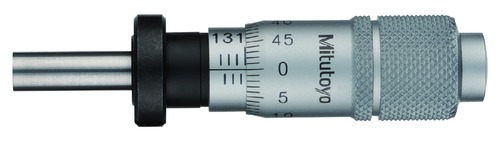

Mitutoyo Micrometer Head 0-13Mm 148-822

Product Code: 148-822

$104.10$94.64 Ex. GST

Product Code: 148-822 SKU 148-822 Categories MEASUREMENT, Micrometer Head 0-13Mm

Mitutoyo Micrometer Head 0-13Mm 148-822 - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Micrometer Heads
Miniature Micrometer Head for incorporating into small jigs and fixtures
-Clear graduations on satin chrome finish

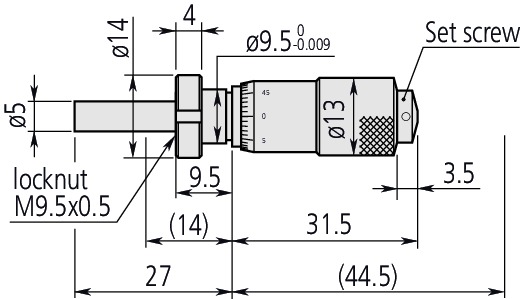

Mitutoyo 148-822 Small standard Micrometer Head 13mm 148-822, 9.5mm Plain Stem with locknut Range 0-13mm Spherical anvil reverse reading

Additional information

Weight	0.0350 kg
barcode
Additional Information	Range: 0 – 13 mm Spindle end: Flat Stem Ø: 9.5 mm Stem: w/ clamp nut Fixture thickness for clamp nut: 6 mm Mass: 35 g Measuring surfaces: Hardened steel (> 60 HRC) Spindle pitch: 0.5 mm Maximum Permissible Error J MPE: ±2 µm Graduation: 0.01 mm Digital/Analog: Analog Inch-Metric: Metric Special features: Reverse Reading
