$143.78$130.71 Ex. GST

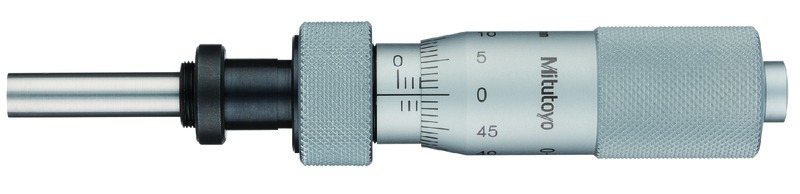

150-212 Mitutoyo Micrometer Head Common Type in Middle Size: 0-25mm
The Mitutoyo 150-212 Common Type in Middle Size Micrometer Head has the following specifications:
Range: 0-25mm
Graduations: .01mm
Accuracy: +/- .002mm
Stem Diameter: 10mm
Stem: With Clamp Nut
Spindle Face: Flat (Carbide Tip)
Remarks: w/o Ratchet Stop, With Spindle Lock
Features:
Style: Common Type in Middle Size
Ratchet stop for constant force.
Long spindle type is available for a variety of applications.
Carbide tipped measuring face.
Specifications:
Available Graduations: .01mm, .001mm, .001″, .0001″
Spindle Pitch: 0.5mm
Spindle Face:
Flat (carbide tip): More than HRA90
Spherical (SR4)
Long Spindle Type: More than HRC60
Scale Surface: Hard-chrome plating
Fixture Thickness for Clamp Nut: 11.5mm
| Weight | 0.1150 kg |
|---|---|
| barcode | |
| Additional Information | Range: 0 – 25 mm |
