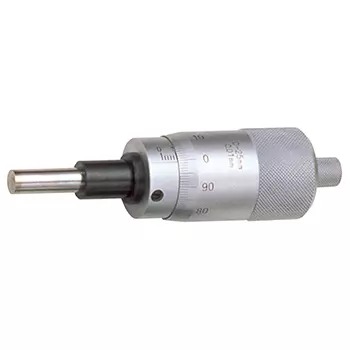

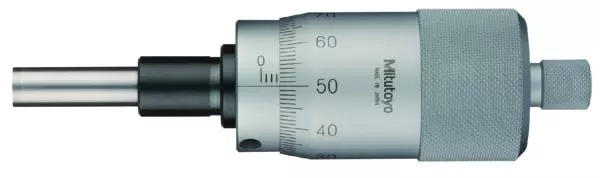

Mitutoyo Micrometer Head 0-25Mm 152-102

Description

152-102 Mitutoyo Micrometer Head – Quick Spindle Feeding of 1mm/Rev: 0-25mm
The Mitutoyo 152-102 Micrometer Head Quick Spindle Feeding of 1mm/Rev has the following specifications:

Range: 0-25mm
Graduations: .01mm
Accuracy: +/- .002mm
Stem Diameter: 12mm
Spindle: Flat (Carbide Tip)
Features:

Non-rotating spindle
Carbide tipped measuring face.
Technical Data:

Available Graduations: .01mm
Spindle Pitch: 1mm
Spindle Face: Flat with Carbide Tip (more than HRA90), lapped surface
Scale Surface: Hard Chrome Platin
