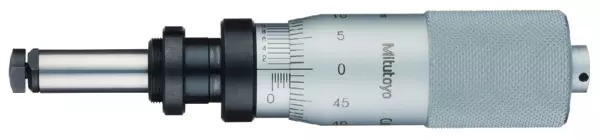

Mitutoyo Micrometer Head 110-108

Product Code: 110-108

$326.19$296.54 Ex. GST

Product Code: 110-108 SKU 110-108 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Make accurate assessments with the Mitutoyo 110-108 Series 110 Differential Screw Translator Micrometer Head. The spindle thread and unit differential movements allow fine spindle feeding for high-resolution measurements. It’s crafted with a carbide-tipped measuring face and a non-rotating spindle.

Features:
Spindle thread and unit differential movements allow fine spindle feeding (0.05mm/rev) for high-resolution measurements
Crafted with a flat, carbide-tipped measuring face
Non-rotating spindle design
Complete with clamp nut

Additional information

Weight 0.1500 kg
barcode
Additional Information

Digital/Analog: Analog
Delivered: In a paper box with spanner 200154
Inch-Metric: Metric
Range: 0 – 1 mm
Graduation: 0.0001 mm
Max. Permissible Error J MPE: ±3 µm / ±1.5 µm
Maximum Permissible Error J MPE (Narrow): ±1.5 µm
Spindle End: Spherical (SR10)
Stem Ø: 12 mm
Stem: With clamp nut
Fixture Thickness for Clamp Nut: 9.5 mm
Measuring Face: Carbide tipped
Mass: 150 g

Brand

Mitutoyo
