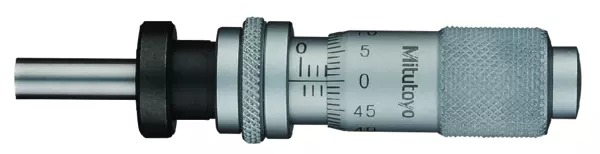

Mitutoyo Micrometer Head 148-120

Description

148-120 Mitutoyo Micrometer Head Common Type in Small Size : 0-13mm

The Mitutoyo 148-120 common type in small size micrometer head has the following specifications:

Range: 0-13mm
Graduations: .01mm
Accuracy: +/- .002mm
Stem Diameter: 9.5mm
Stem: With Clamp Nut
Spindle Face: Flat
With Spindle Lock
Technical Data:

Spindle Pitch: 0.5mm
Spindle Face: Flat or spherical
Scale Surface: Hard-chrome plating
Fixture Thickness for Clamp Nut: 6mm

Weight	0.0450 kg
barcode
Additional Information	Digital/Analog: Analog Delivered: In a paper box with spanner 301336 Inch-Metric: Metric Range: 0 – 13 mm Graduation: 0,01 mm Max. Permissible Error J MPE: ±2 µm Spindle end: Flat Spindle pitch: 0,5 mm Stem Ø: 9.5 mm Stem: w/ clamp nut Fixture thickness for clamp nut: 6 mm Measuring face: Hardened steel (>60 HRC) Mass: 45 g
