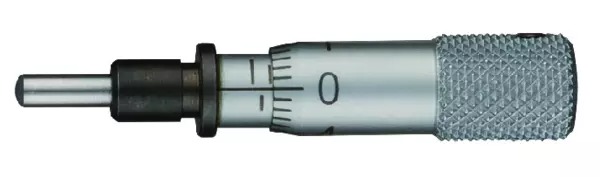

Mitutoyo Micrometer Head 148-215

Description

148-215 Mitutoyo Micrometer Head Ultra Small/Small Type: 0-5mm

The Mitutoyo 148-215 Ultra Small/Small Type Micrometer Head has the following specifications:

Range: 0-5mm
Graduations: .02mm
Accuracy: +/- .005mm
Stem Diameter: 3.5mm
Stem: Plain
Spindle Face: Spherical (SR1.5)
Features:

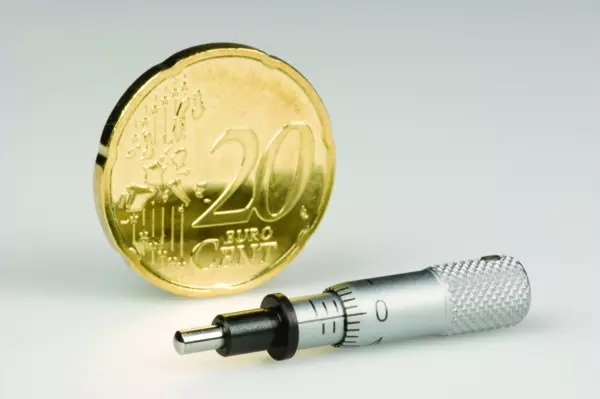

Miniature micrometer heads for ease of incorporating into machines.
Specifications:

Spindle Pitch: 0.5mm
Spindle Face: Flat or Spherical of SKS3 (more than HRC60), lapped surface
Scale Surface: Hard-chrome plating

Weight	0.0040 kg
barcode
Additional Information	Digital/Analog: Analog Delivered: In a paper box Inch-Metric: Metric Range: 0 – 5 mm Graduation: 0,02 mm Max. Permissible Error J MPE: ±5 µm Spindle end: Spherical (SR1.5) Spindle pitch: 0,5 mm Stem Ø: 3.5 mm mm Stem: Plain Measuring face: Hardened steel (>60 HRC) Mass: 4 g
