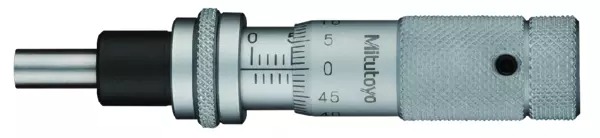

148-506 Mitutoyo Micrometer Head Common Type in Small Size with Zero Adjustment: 0-13mm
The Mitutoyo 148-506 Micrometer Head in Small Size with Zero Adjustment has the following specifications:
Range: 0-13mm
Graduations: .01mm
Accuracy: +/- .002mm
Stem Diameter: 9.5mm
Stem: Plain
Spindle Face: Flat
Remarks: With Spindle Lock
Features:
The thimble can be set to zero at any position by loosening the setscrew.
Technical Specifications:
Spindle Pitch: 0.5mm
Spindle Face: Flat or spherical of SKS3 (more than HRC60)
Scale Surface: Hard-chrome plating
Fixture Thickness for Clamp Nut: 6mm
| Weight | 0.0350 kg |
|---|---|
| barcode | |
| Additional Information | Digital/Analog: Analog |
